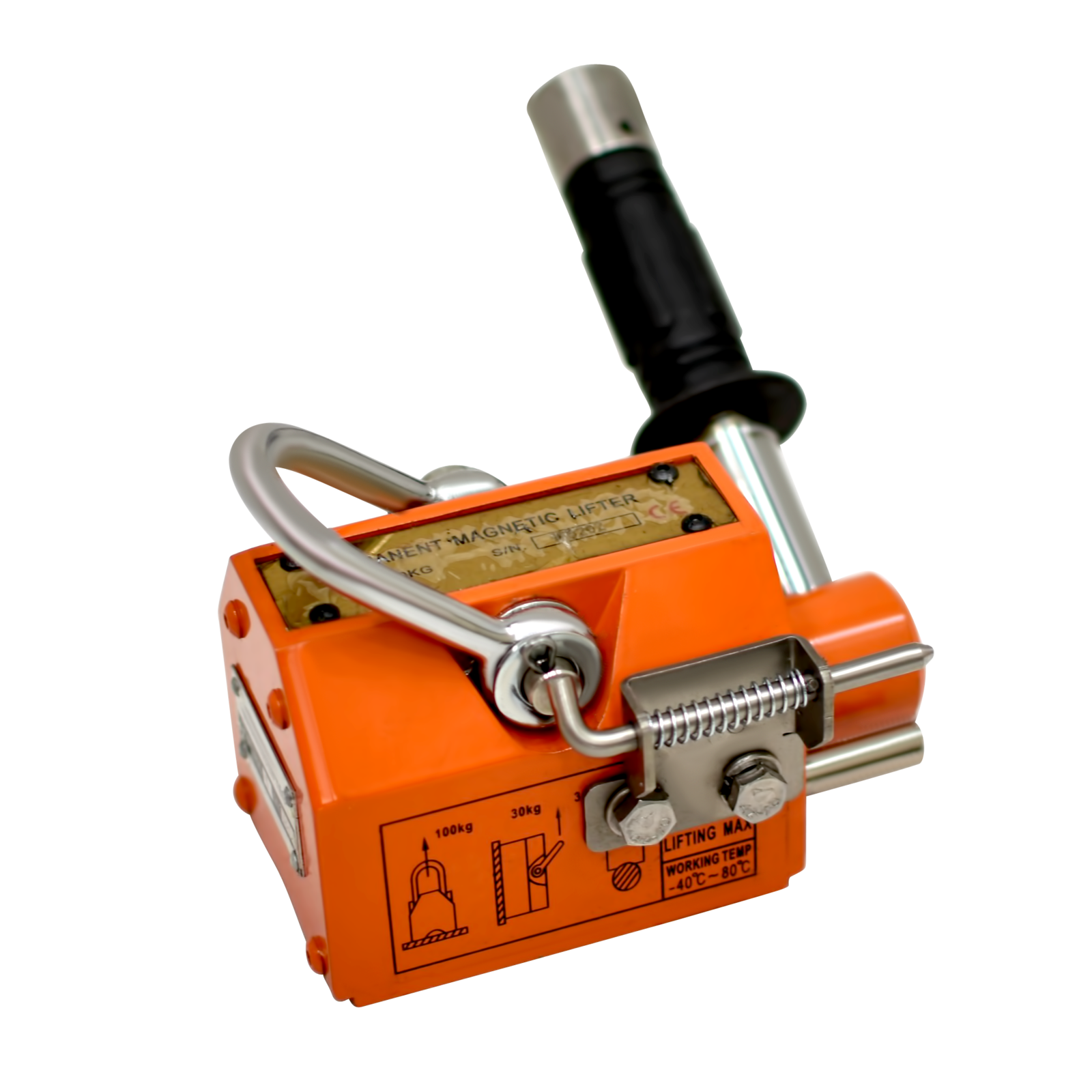

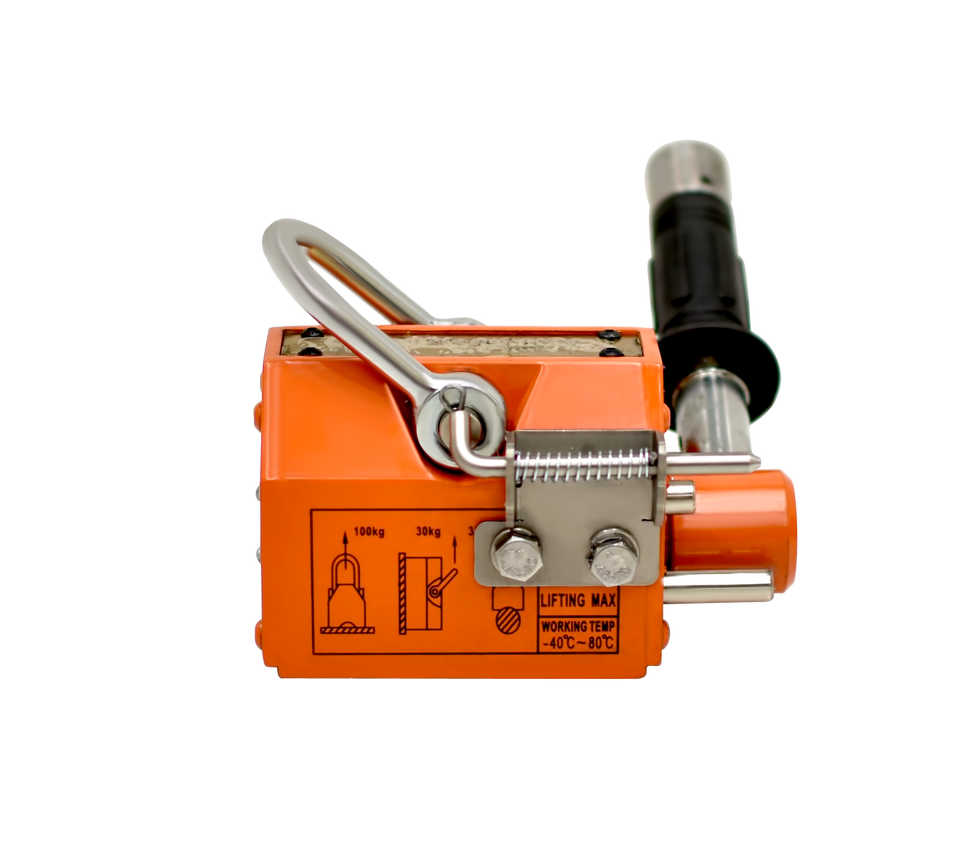

Lifting Magnet Pro-Lift 100 Kg PL100

Benefits

Substantially cuts production time
Commonly used for handling steel sections, beams & steel components.
Useful for transfer of steel sections on & off trucks, cutting beds, guillotines and saws.
Simple, safe and efficient.

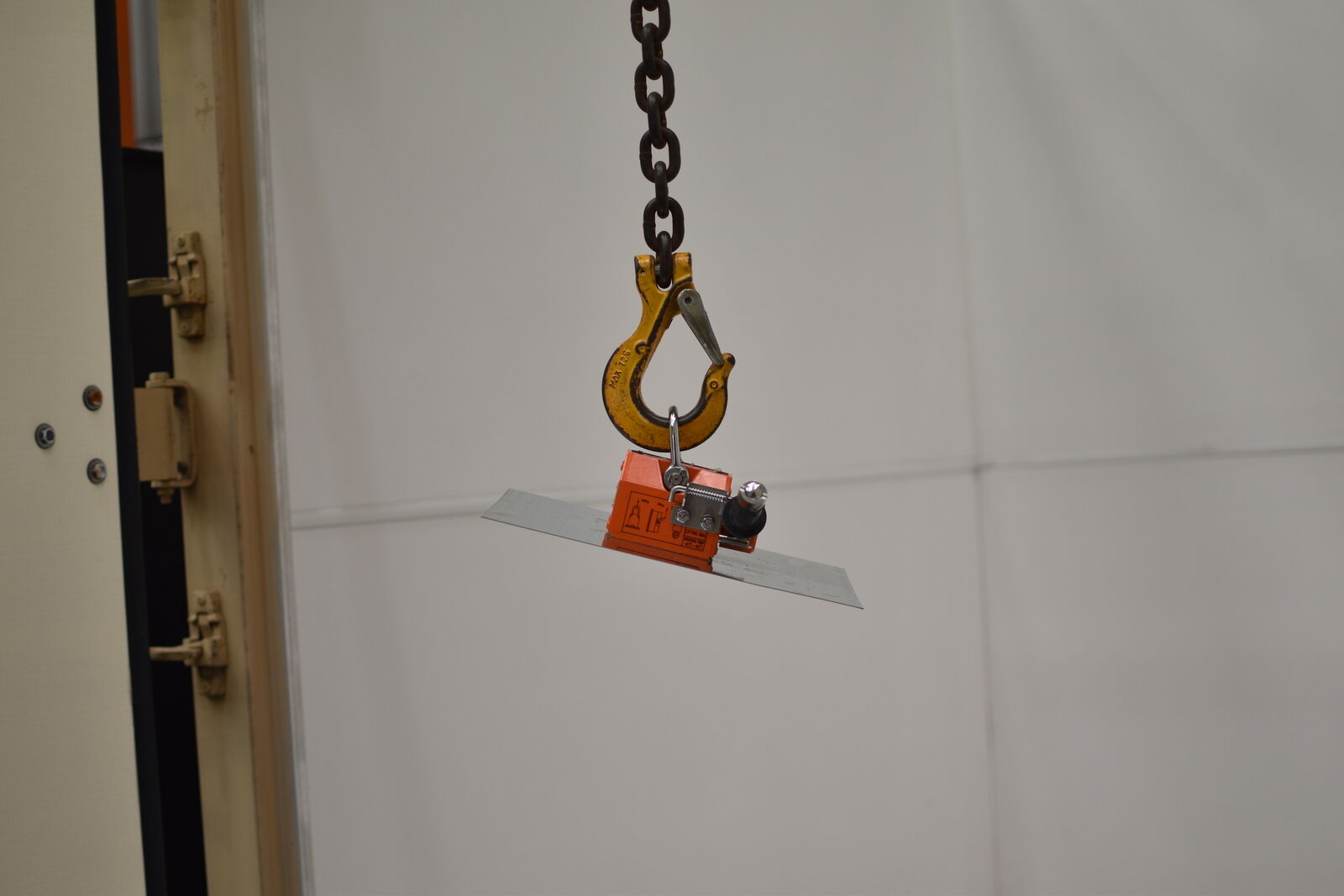

Lifting of plates, profiles, beams, steel slabs and round sections.

Features:

Comes with an additional Safety Latch.
Load Test Certificate available on request.
3:1 safety ratio built in for optimum safety.
Lifting capacities ranging from 100kg to 6,000kg (6 tonne)

SPECIFICATIONS

Max. Break Away	300 Kg
Safe Working Load	100 Kg
Full Saturation Thickness	30 mm
Maximum Thickness for De- Stock	30 mm
Net Weight	3 Kg
Height - Less Shackle	67 mm
Magnet Foot Print ( L x B)	62 mm x 92 mm
Handle Length - R	126 mm

Fitted Safety Latch Included.
Complies with Lifting Devices
Standard AS 4991-2004. Section 6.2.1
Load Control.

Material Thickness - SWL at 3:1 in KG
30 mm - 100 kg
20 mm - 80 kg
15 mm - 70 kg
10 mm - 60 kg

Part Number/SKU: PL100

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	PL100
Brand	MSA
Shipping Weight	5.0000kg
Shipping Width	0.300m
Shipping Height	0.400m
Shipping Length	0.400m
Unit Of Measure	ea
