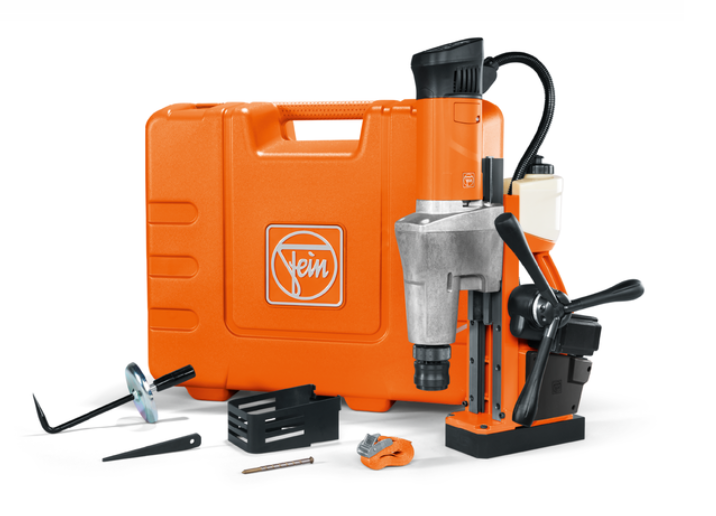

Metal core drilling unit up to 50 mm Fein KBM50AUTO

Lightweight, powerful and ingenious 2-speed auto magnetic core drill offering maximum efficiency and minimum physical strain for core drilling in the workshop and on the construction site.

• Saves time and money when producing a large number of holes thanks to the digitally controlled drill feed.
• Thanks to reproducible and timed drilling times, working hours for commissioned and serial work can be planned.
• Universal work, such as tapping in manual tool mode thanks to clockwise/anti-clockwise rotation and MT3 interface. FEIN high-power motor with stable speed.
• Electronic speed setting.
• High magnetic holding force.
• Convenient magnetic holding force display.
• Integrated coolant tank.
• Tilt sensor.
• Controls which can be clearly seen.
• Also available with accessories.
• In manual tool mode only

• Carbide core drill bit max. diameter : 50 mm
• HSS core drill max : 40 mm
• Core drill, drilling depth max : 50(75*) mm
• Twist drill max : 18/23** mm
• Tapping : M 16**
• Countersinking max : 50** mm
• Reaming max : 23** mm
• Input : 1200 W
• Output : 610 W
• Speed, full load :1st gear 130-260 rpm
• 2nd gear : 260-520 rpm
• Core drill holder : QuickIN
• Tool Holder : MK 3
• Stroke : 145 mm
• Total stroke range : 315 mm
• Magnetic holding power : 12 500 N
• Magnetic foot dimensions 195 x 90 mm
• Cable with plug : 4 m
• Weight according to EPTA : 16.2 kg
• ID 72704261060

Part Number/SKU: KBM50AUTO
