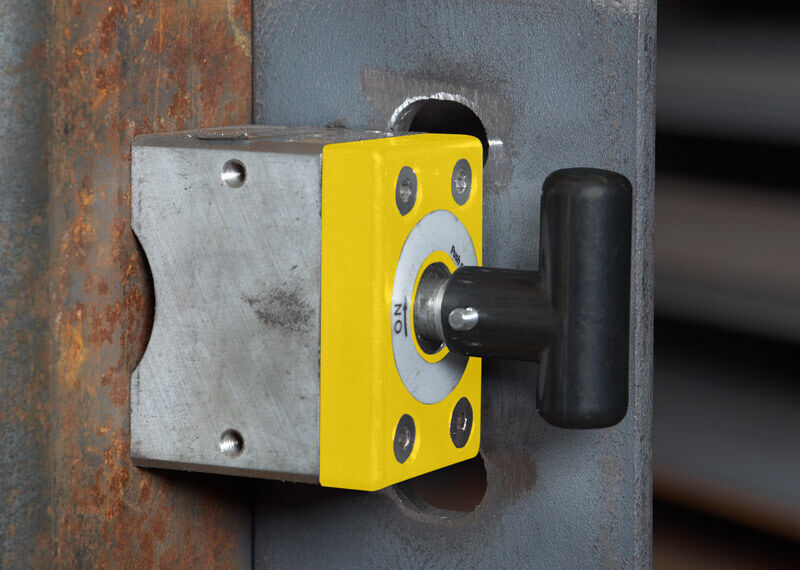

Magswitch 8100494 Mag Square 165

On/off magnetic work-holding square with 165 lb. (75 kg) of hold force

NEW TOOL! 40% stronger than the Magsquare 150!

Benefits
Super fast setups, instant work-holding. On/off control—no fighting the magnet, precise positioning. Stays clean—when turned off, debris falls off. Instant work-holding anywhere on a steel surface. Create your own fabrication jigs by mounting in M5 holes. Grips flat and pipe

Productivity Advantages
Execute setups with unprecedented speed. Time savings in the shop will be significant. Strong magnet lets you do more of the heavy work with a magnet

Safety Advantage
Stays clean—unlike traditional magnetic squares that hold on to metal chips even when turned off, with Magswitch, you won’t cut your fingers cleaning away steel debris.

Features

• On/off Magswitch magnet control—precise placement
• Turns all the way off—stays clean Strong magnet 150 lb. (68 kg) of hold force
• M5 * 8 threaded holes on all sides
• Machined at 90° Magnetic grip on 5 sides—strong on 3 sides
• Pipe notch

• Max Breakaway: 454 kg
• Full Saturation Thickness: 13 mm
• 2:1 Shear Working Load: 67 kg
• Net Weight: 3.36 kg
• Overall Height: 147 mm
• Magnetic Pole Footprint: 72 x 108 mm

Part Number/SKU: 8100494
