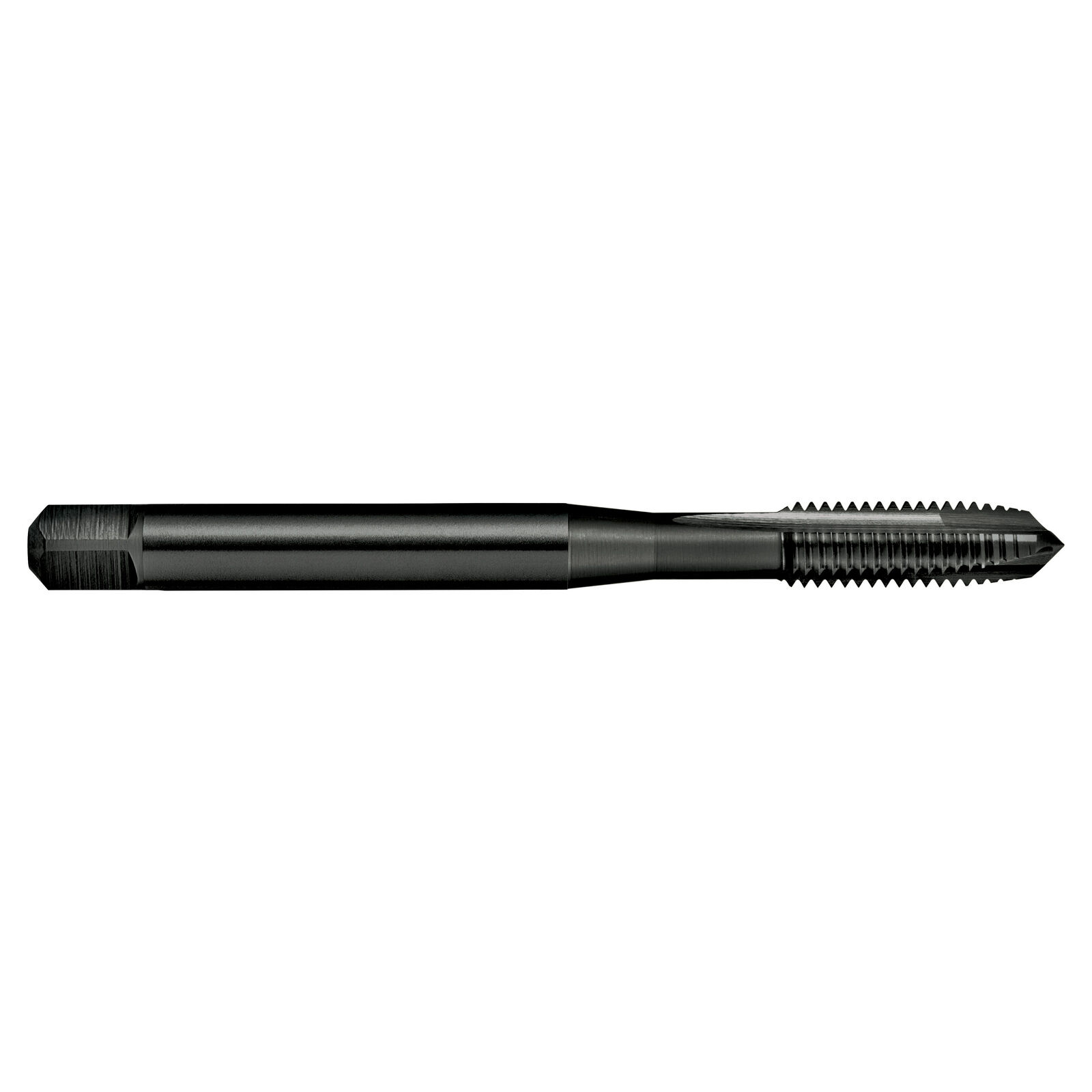

Tap T115 M 14x2 6HX Gun VA Din376 B PM-V3 Blu Sutton T1151400



Features

  • PM-HSSE V3 offers superior performance
  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P






Part Number/SKU: T1151400

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1151400
Barcode # 9311963413990
Brand Sutton Tools
Shipping Weight 0.0830kg
Shipping Width 0.017m
Shipping Height 0.017m
Shipping Length 0.114m
