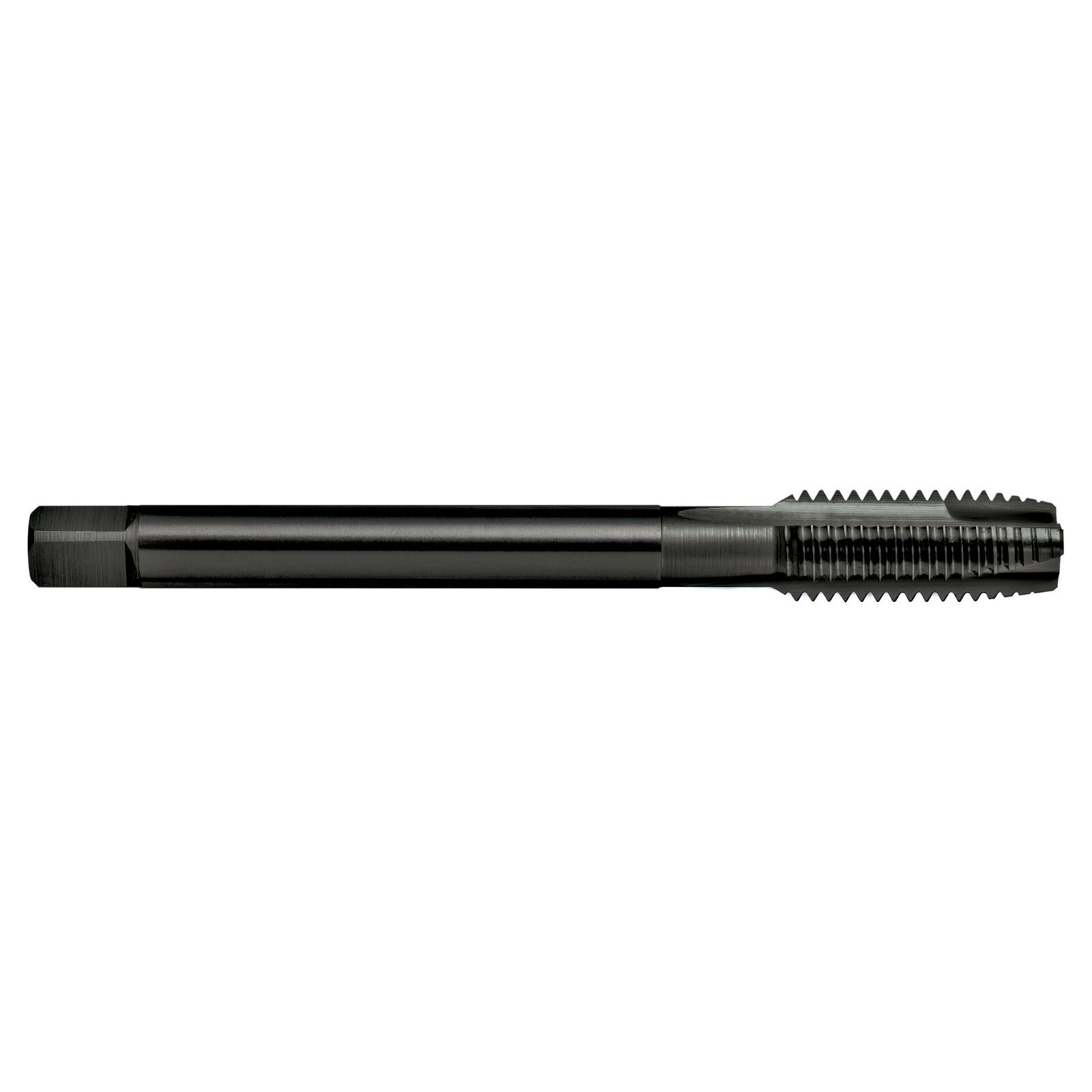

Tap T115 M 16x2 6HX GUN VA DIN376 B PM-V3 BLU Sutton T1151600

Features

• PM-HSSE V3 offers superior performance
• Use in stainless steels and high strength steels
• Suitable for materials up to 850N/mm2
• Through holes
• Depths up to 3 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: 6HX
• Lead: Form B / 4.5 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Stainless Steel - Austenitic: Age Hardened
• Stainless Steel - Duplex

Part Number/SKU: T1151600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
