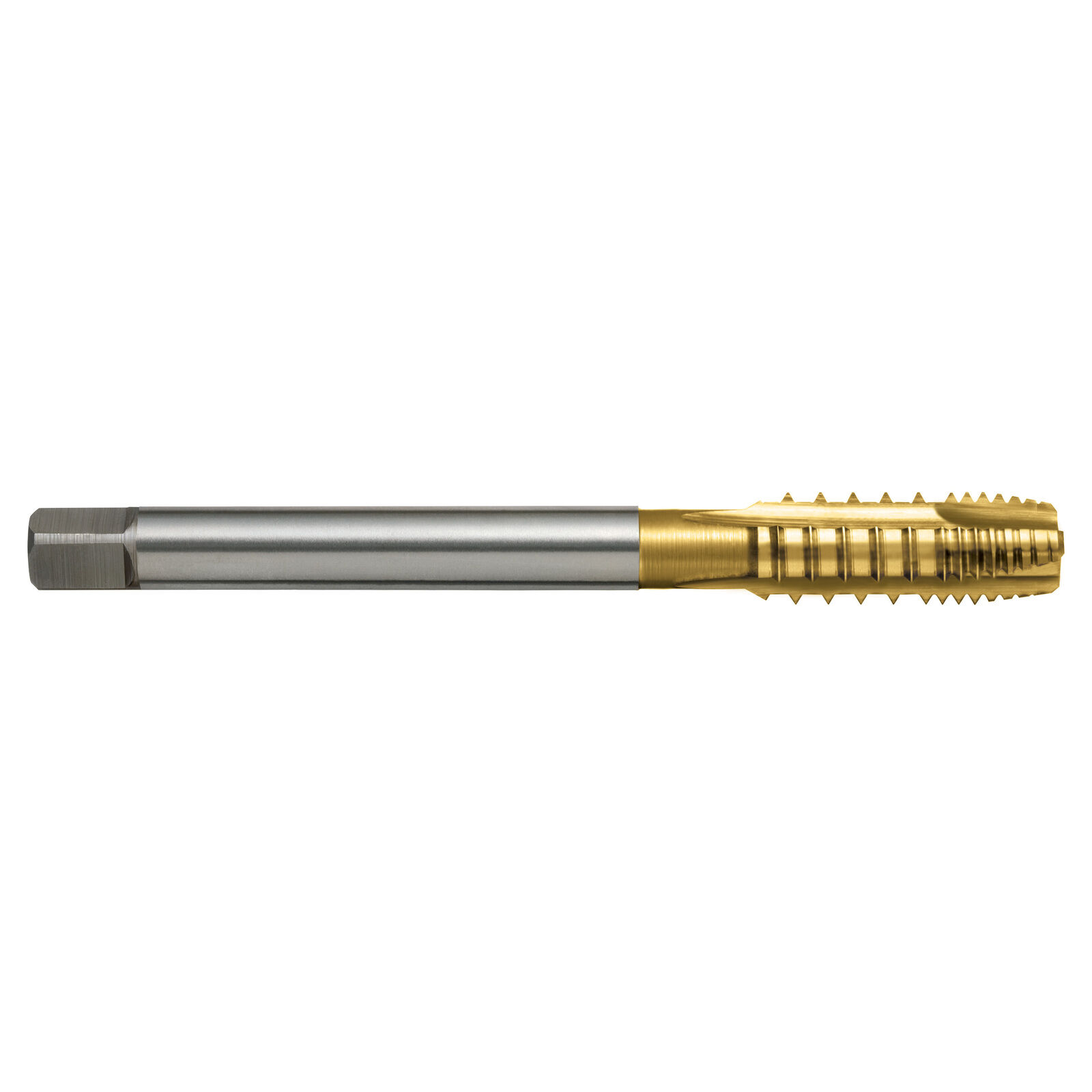

TAP T131 M 16x2 6H GUN W-AZ DIN376 B HSSE TiN T1311600



Features

  • Interrupted threads allow greater lubricant flow and reduce friction
  • Use in soft elastic materials
  • For long-chipping materials
  • Through holes up to 3 x d1

Specifications

  • Designation: W (for Soft Materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shak (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1311600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1311600
Barcode # 9311963398280
Brand Sutton Tools
Shipping Weight 0.1010kg
Shipping Width 0.024m
Shipping Height 0.023m
Shipping Length 0.115m
