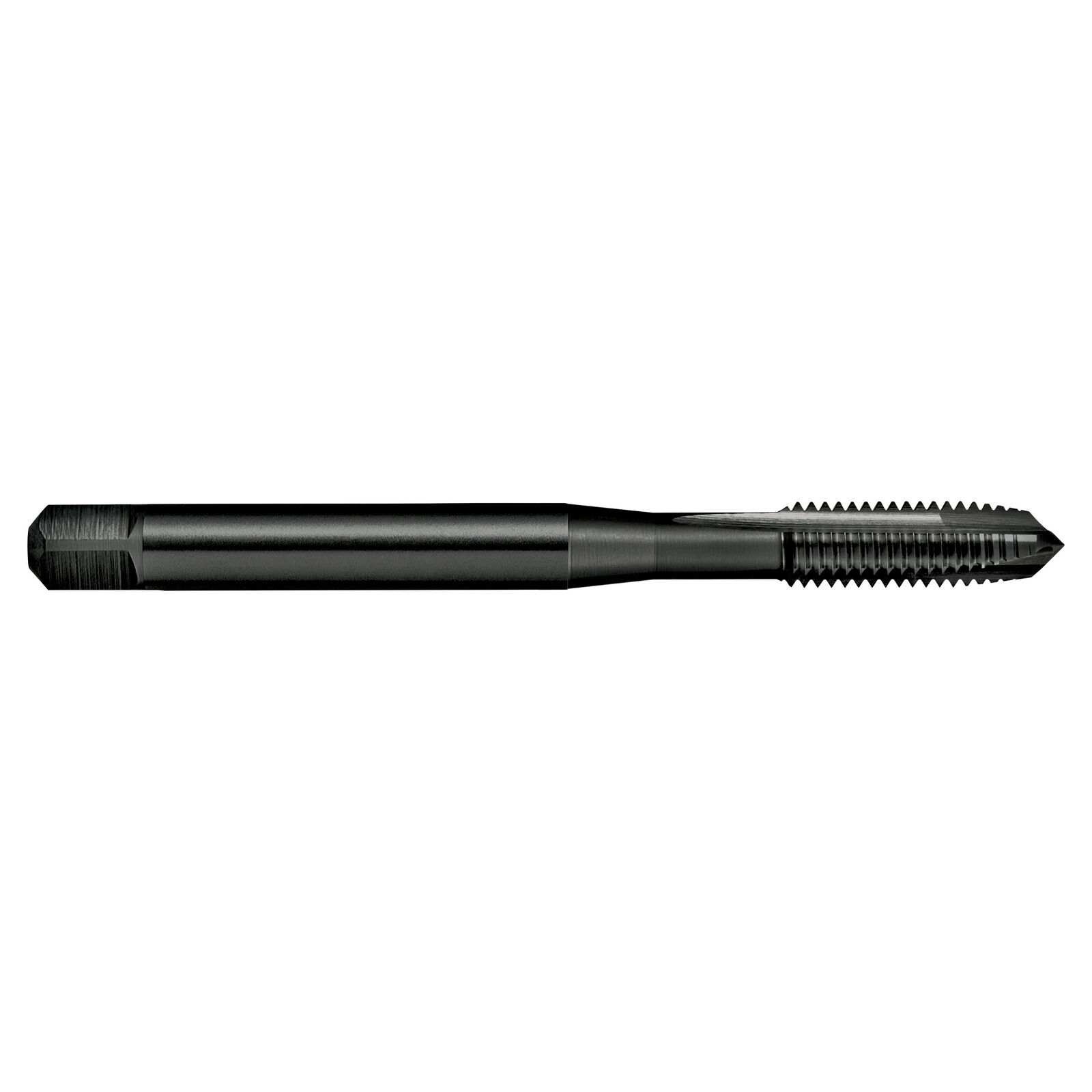

Tap T144 M 5x0.8 6HX Gun H Din371 B PM-Co. Blu Sutton T1440500

Features

• Suitable for harder short chipping materials up to 45 HRc
• Through holes
• Depths up to 3 x d1

Specifications

• Designation: H (for hard materials forming short chips)
• Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN371
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: 6HX
• Lead: Form B / 4.5 x P

Part Number/SKU: T1440500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
