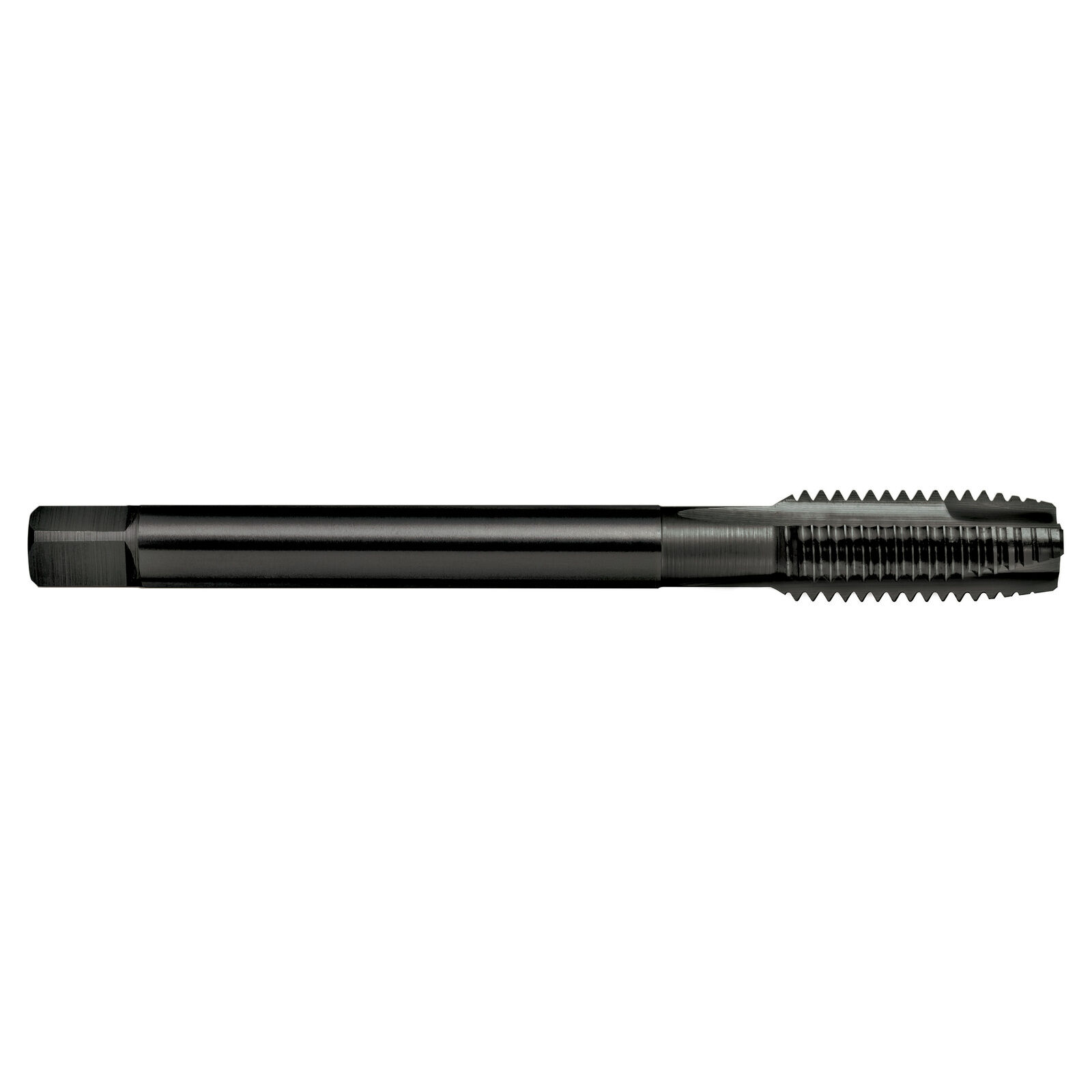

Tap T145 M 16x2 6HX Gun H Din376 B PM-Co. Blu Sutton T1451600



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1451600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1451600
Barcode # 9311963398501
Brand Sutton Tools
Shipping Weight 0.1040kg
Shipping Width 0.002m
Shipping Height 0.002m
Shipping Length 0.011m
