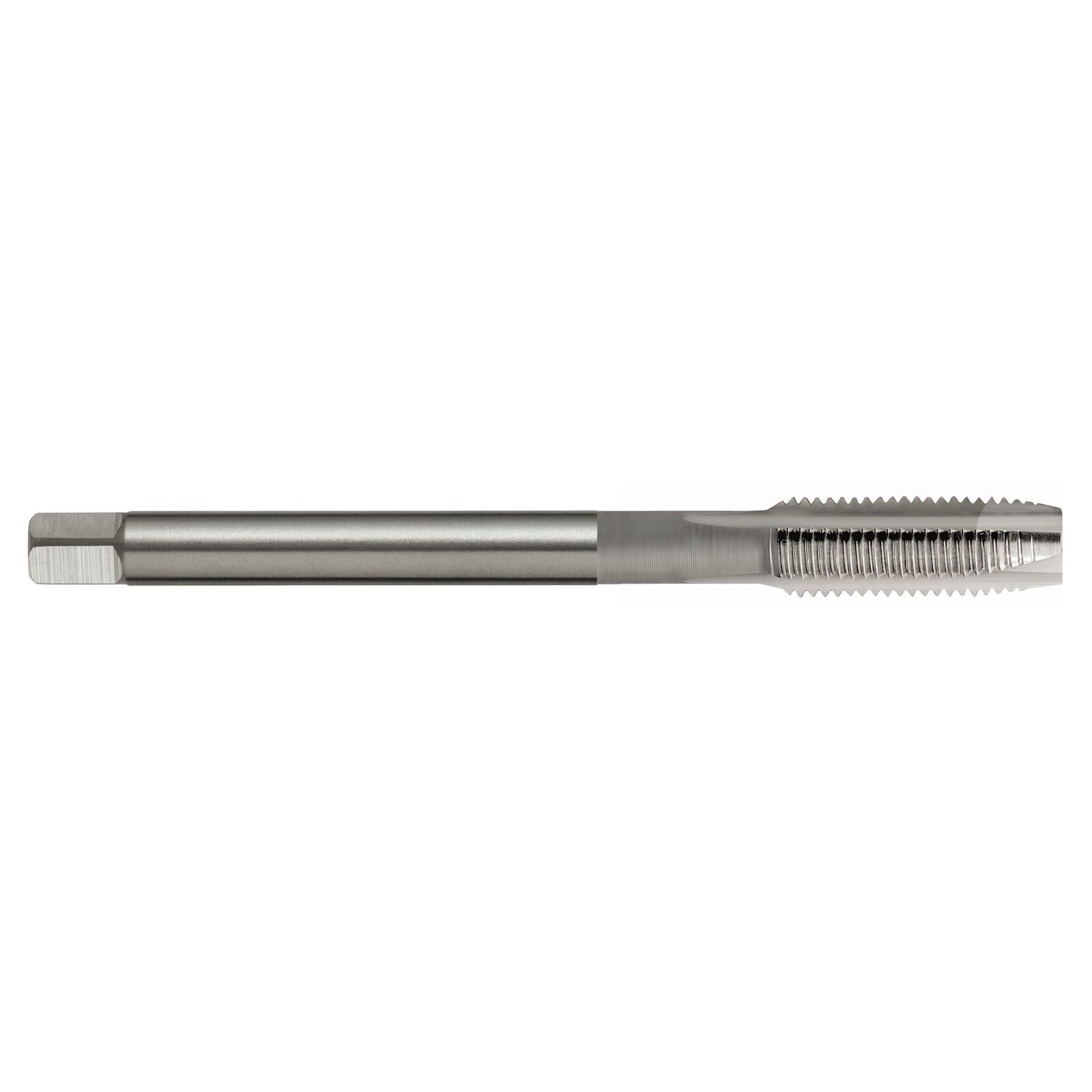

Tap T155 MF 10x1 6G Gun N Din374 B HSSE Sutton T1551005



Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • PM-HSSE V3 offers higher edge hardness than standard VA series
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1551005

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1551005
Barcode # 9311963516455
Brand Sutton Tools
Shipping Weight 0.0340kg
Shipping Width 0.014m
Shipping Height 0.013m
Shipping Length 0.115m
