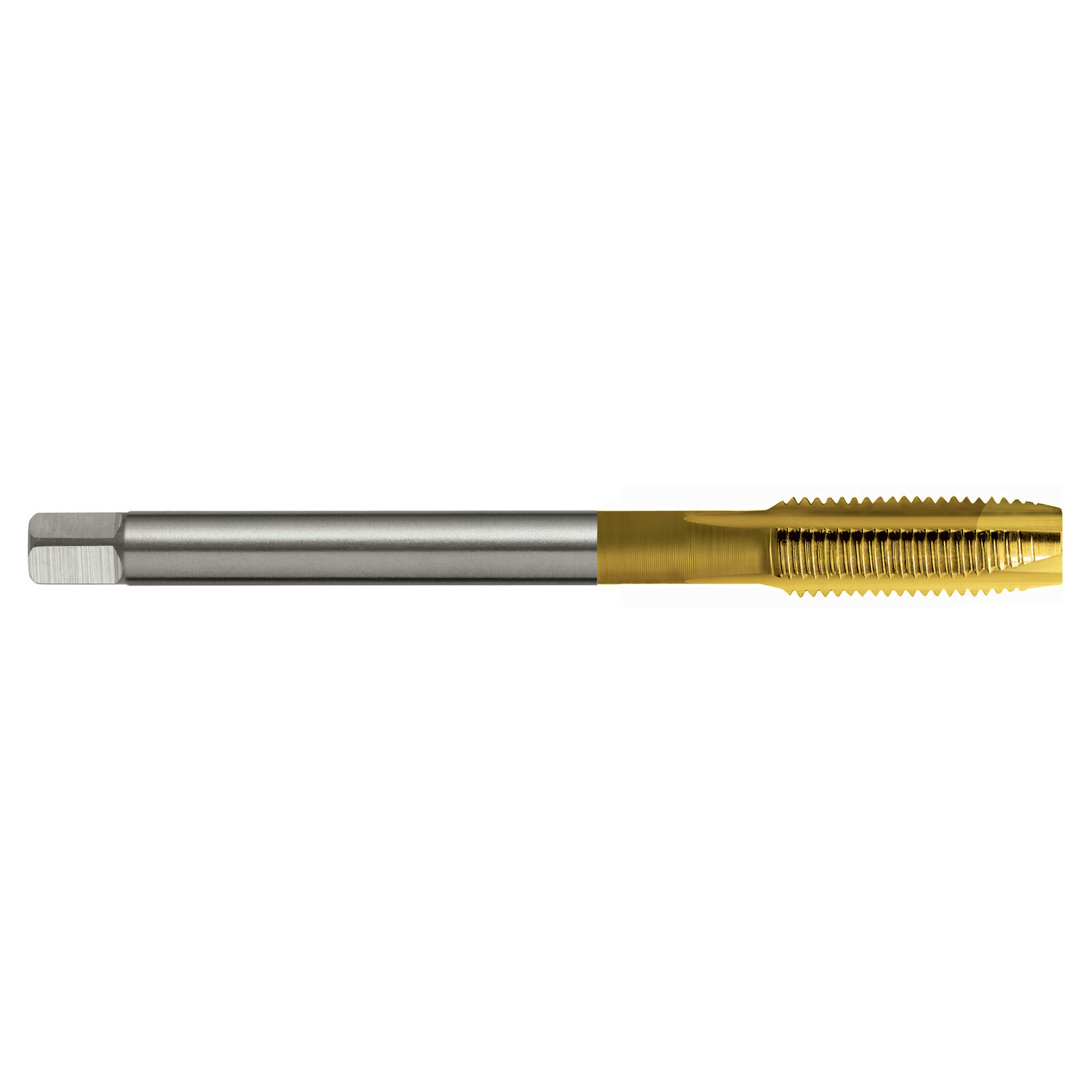

TAP T157 MF 8x0.75 6H GUN N DIN374 B HSSE TiN T1570804



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Lead: ISO 2 / 6H Form B / 4.5 x P

Part Number/SKU: T1570804

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1570804
Barcode # 9311963516295
Brand Sutton Tools
Shipping Weight 0.0240kg
Shipping Width 0.017m
Shipping Height 0.016m
Shipping Length 0.098m
