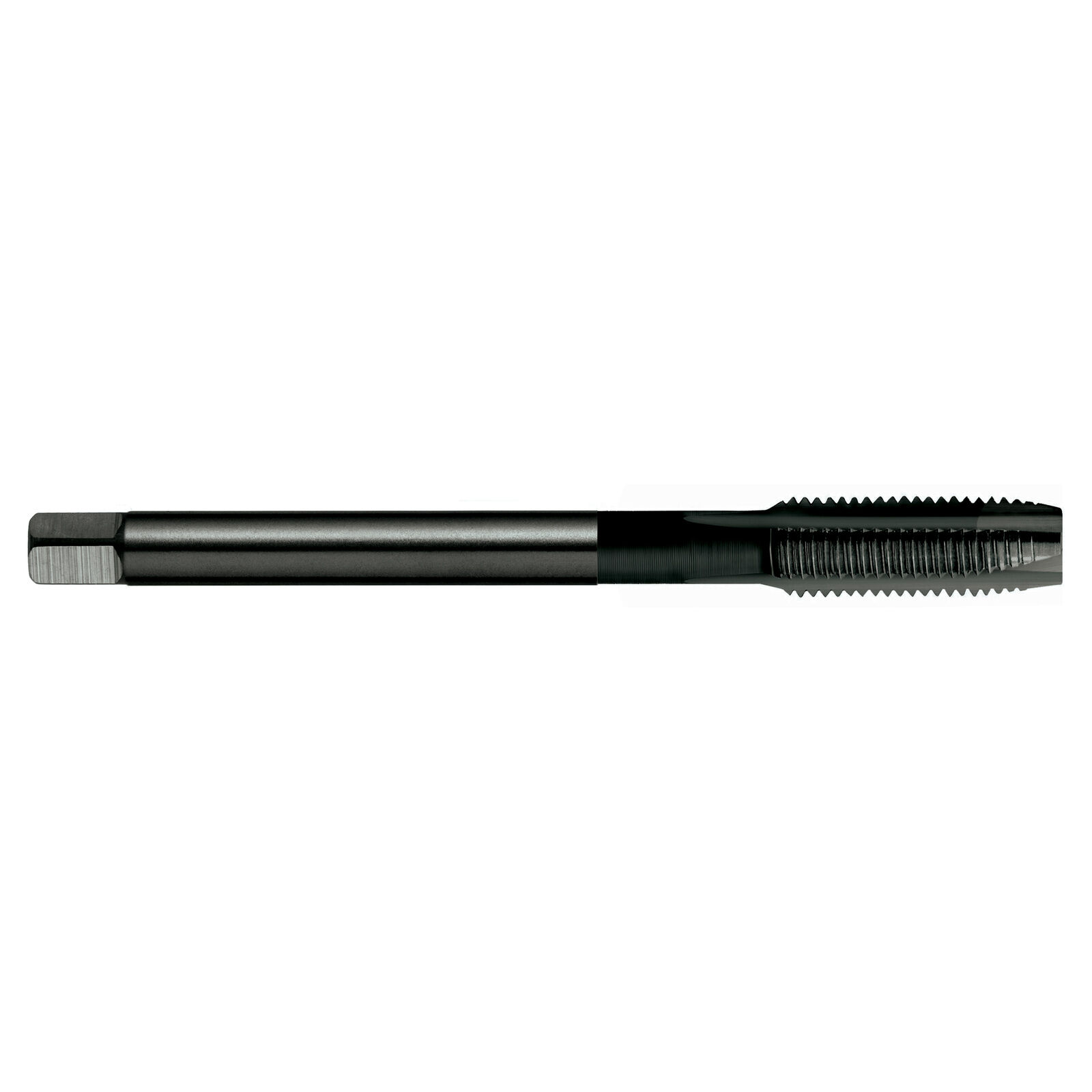

Tap T158 MF 12x1 6H GUN VA DIN374 B HSSE BLU Sutton T1581205

Features

• Use in stainless steels and high strength steels up to 1000N/mm2
• PM-HSSE V3 offers higher edge hardness than standard VA series
• Through holes
• Suitable for machine operations
• Depths up to approx. 3 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Stainless Steel - Austenitic: Age Hardened
• Stainless Steel - Duplex

Part Number/SKU: T1581205
