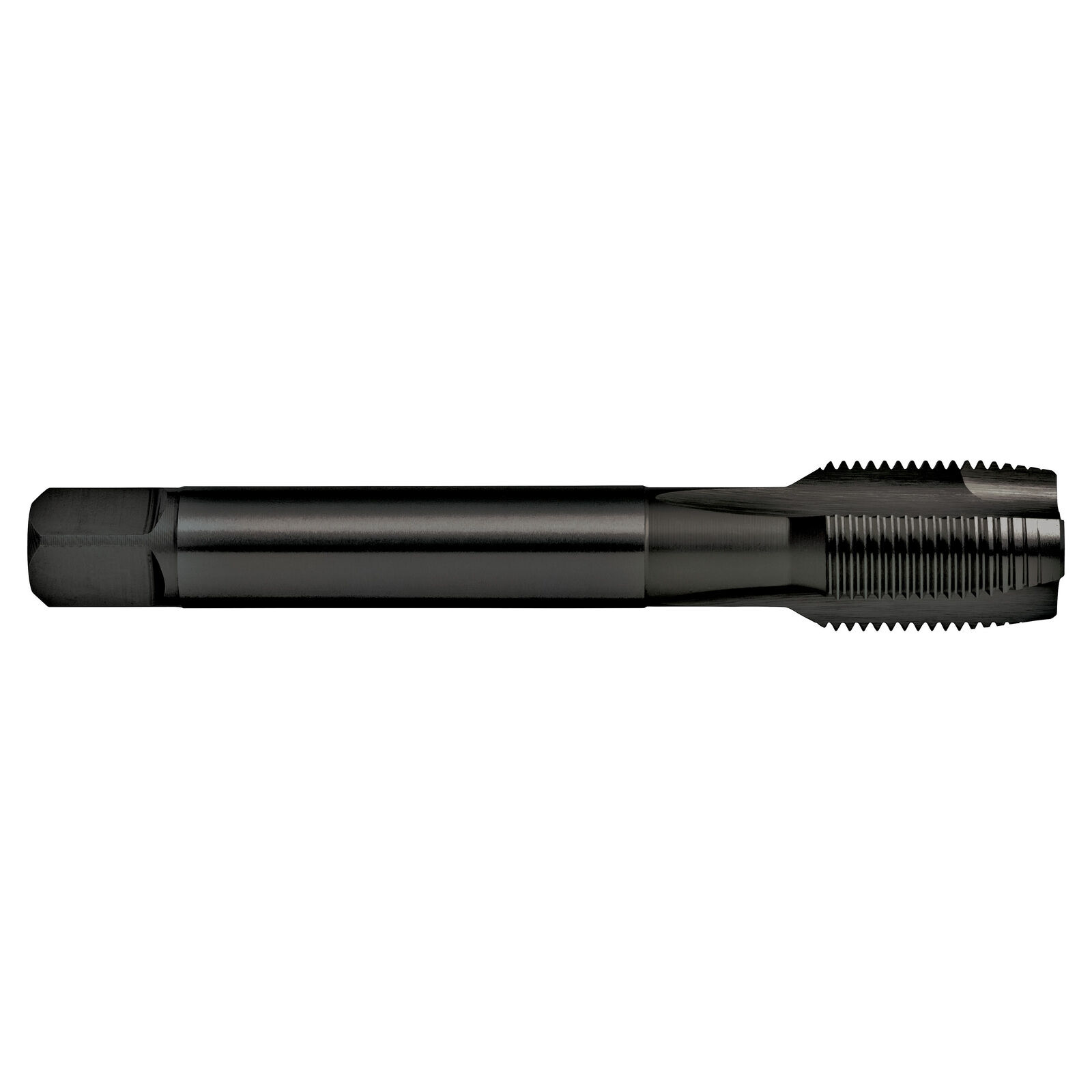

Tap T179 G 3/8-19 (BSPF) Gun N Din5156 B HSSE Blu Sutton T1791666



Features

  • General Purpose use in materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form B / 4.5 x P

Part Number/SKU: T1791666

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1791666
Barcode # 9311963162980
Brand Sutton Tools
Shipping Weight 0.0980kg
Shipping Width 0.023m
Shipping Height 0.023m
Shipping Length 0.103m
