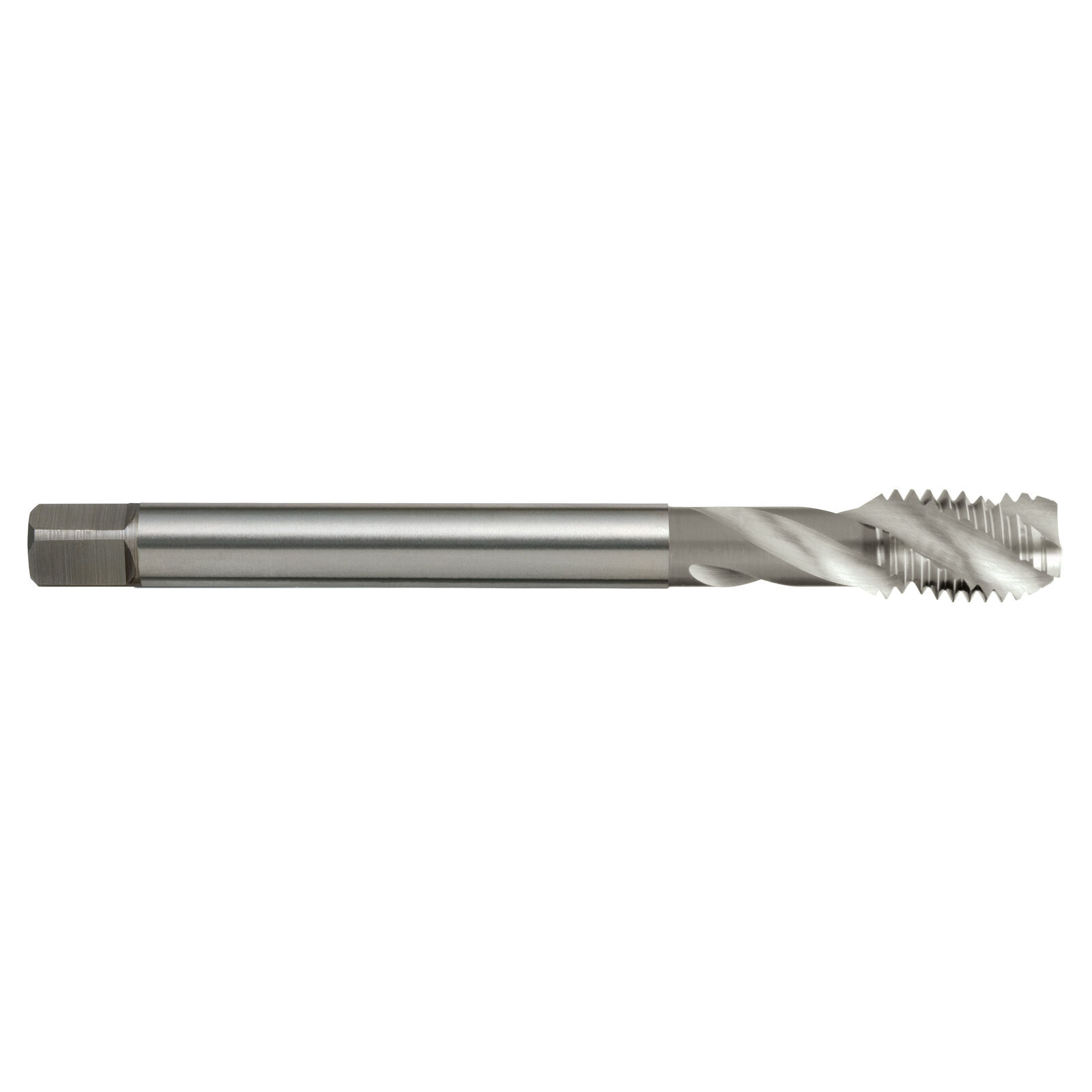

Tap T188 M 6x1 6H Spiral R40 N DIN376 C HSSE Sutton T1880600



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T1880600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1880600
Barcode # 9311963128337
Brand Sutton Tools
Shipping Weight 0.0120kg
Shipping Width 0.011m
Shipping Height 0.009m
Shipping Length 0.116m

Be The First To Review This Product!

Help other Top Tools users shop smarter by writing reviews for products you have purchased.

Write a product review
