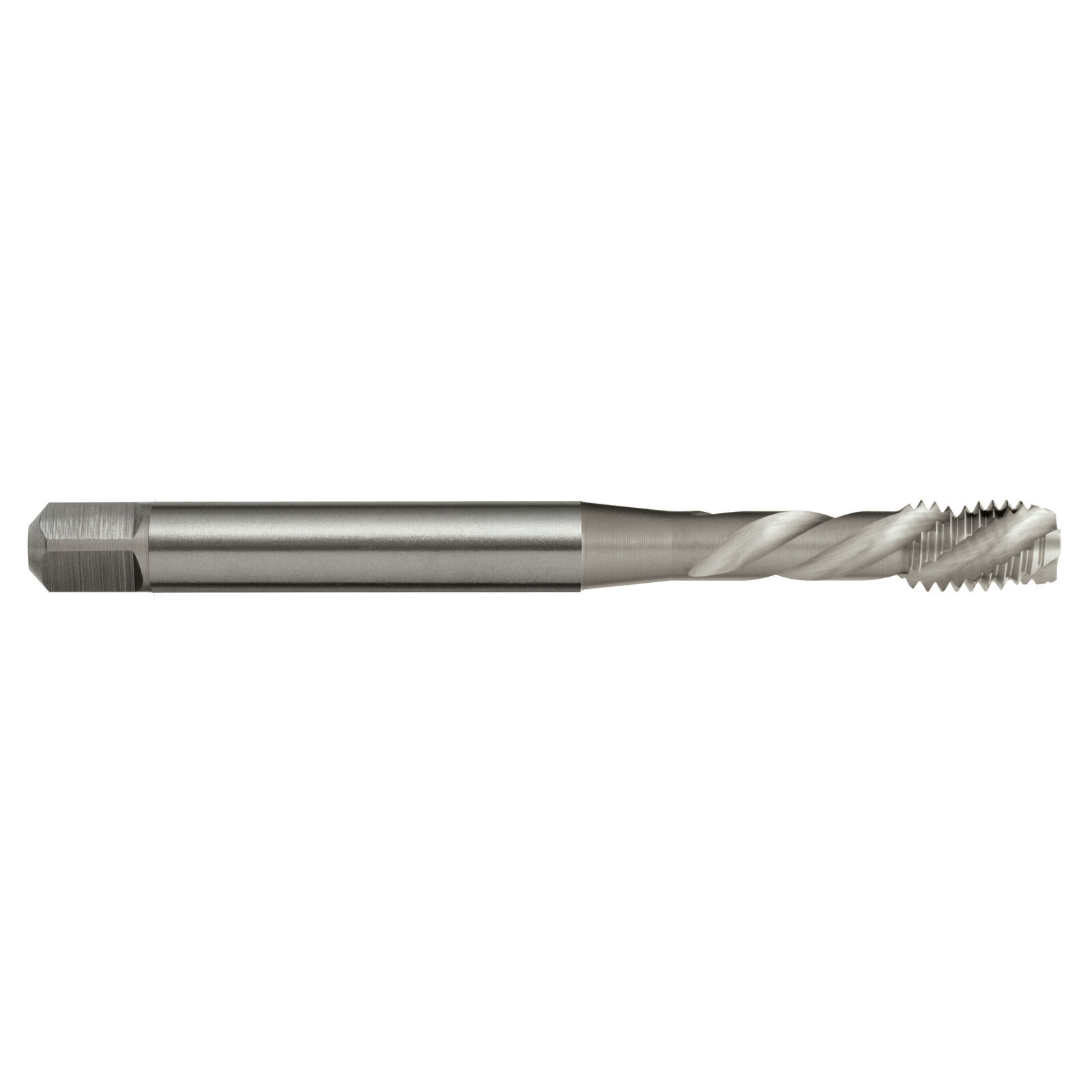

Tap T195 M 6x1 6H Spiral LH L40 N Din371 C HSSE Sutton T1950600



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: L40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T1950600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1950600
Barcode # 9311963399218
Brand Sutton Tools
Shipping Weight 0.0160kg
Shipping Width 0.010m
Shipping Height 0.009m
Shipping Length 0.094m
