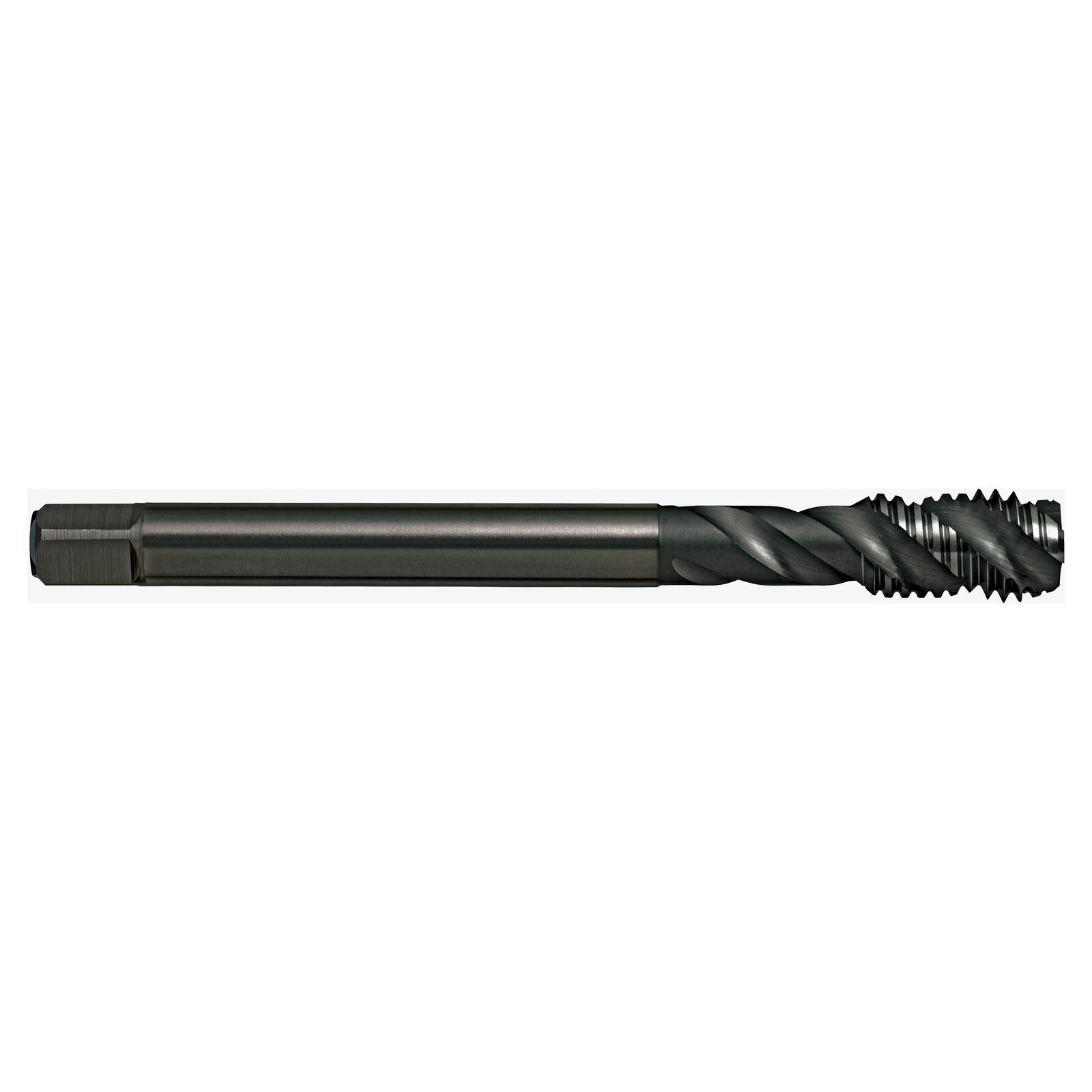

Tap T199 M 10x1.5 6H Spiral R45 VA-DH Din376 C HSSE Blu Sutton T1991000

Features

• Suitable for controlled tapping in deep holes
• Use in stainless steels and high strength steels up to 850N/mm2
• Blind holes
• Depths up to 3 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R45
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H

Part Number/SKU: T1991000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
