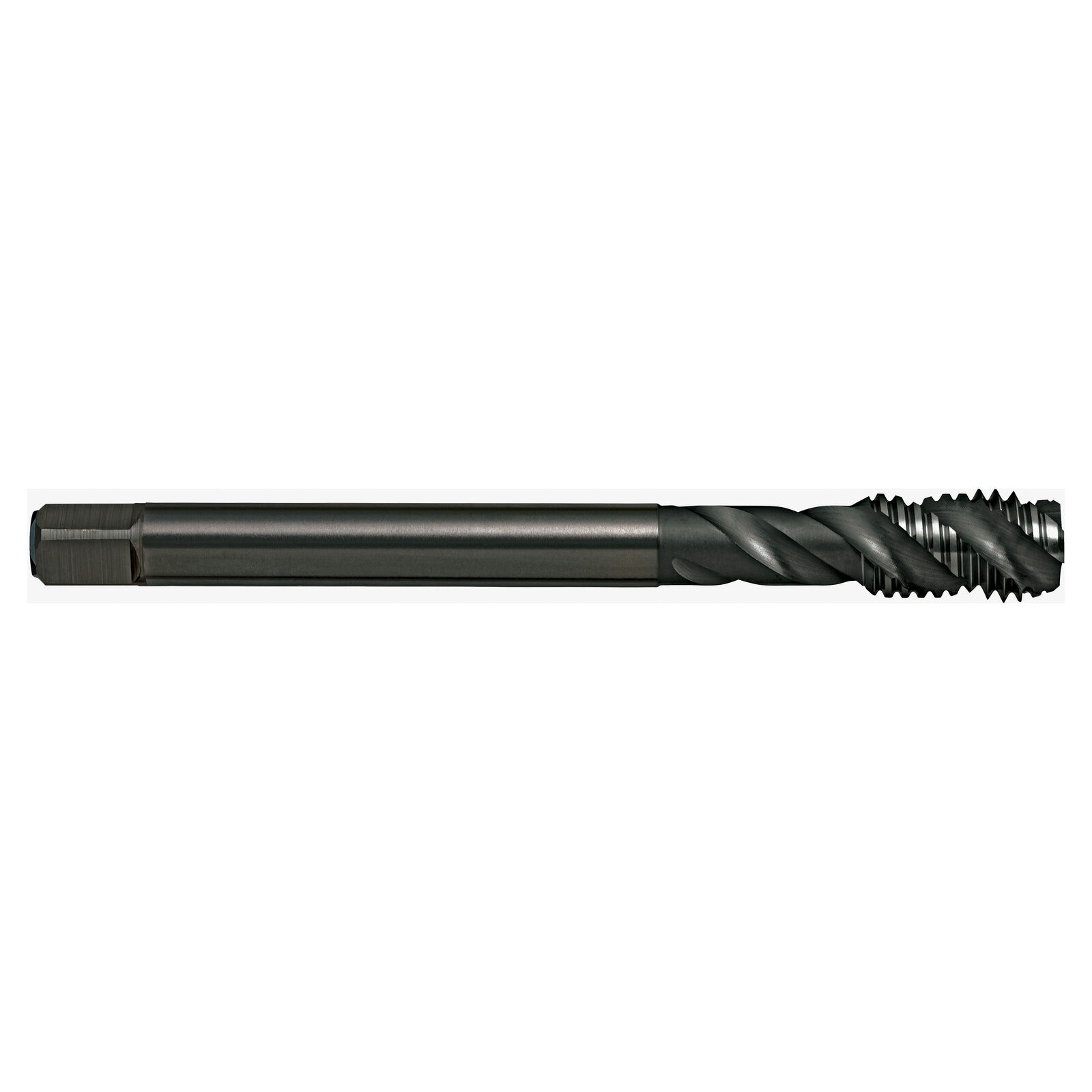

Tap T199 M 8x1.25 6H Spiral R45 VA-DH Din376 C HSSE Blu Sutton T1990800



Features

  • Suitable for controlled tapping in deep holes
  • Use in stainless steels and high strength steels up to 850N/mm2
  • Blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H

Part Number/SKU: T1990800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1990800
Barcode # 9311963095431
Brand Sutton Tools
Shipping Weight 0.0220kg
Shipping Width 0.013m
Shipping Height 0.011m
Shipping Length 0.115m
