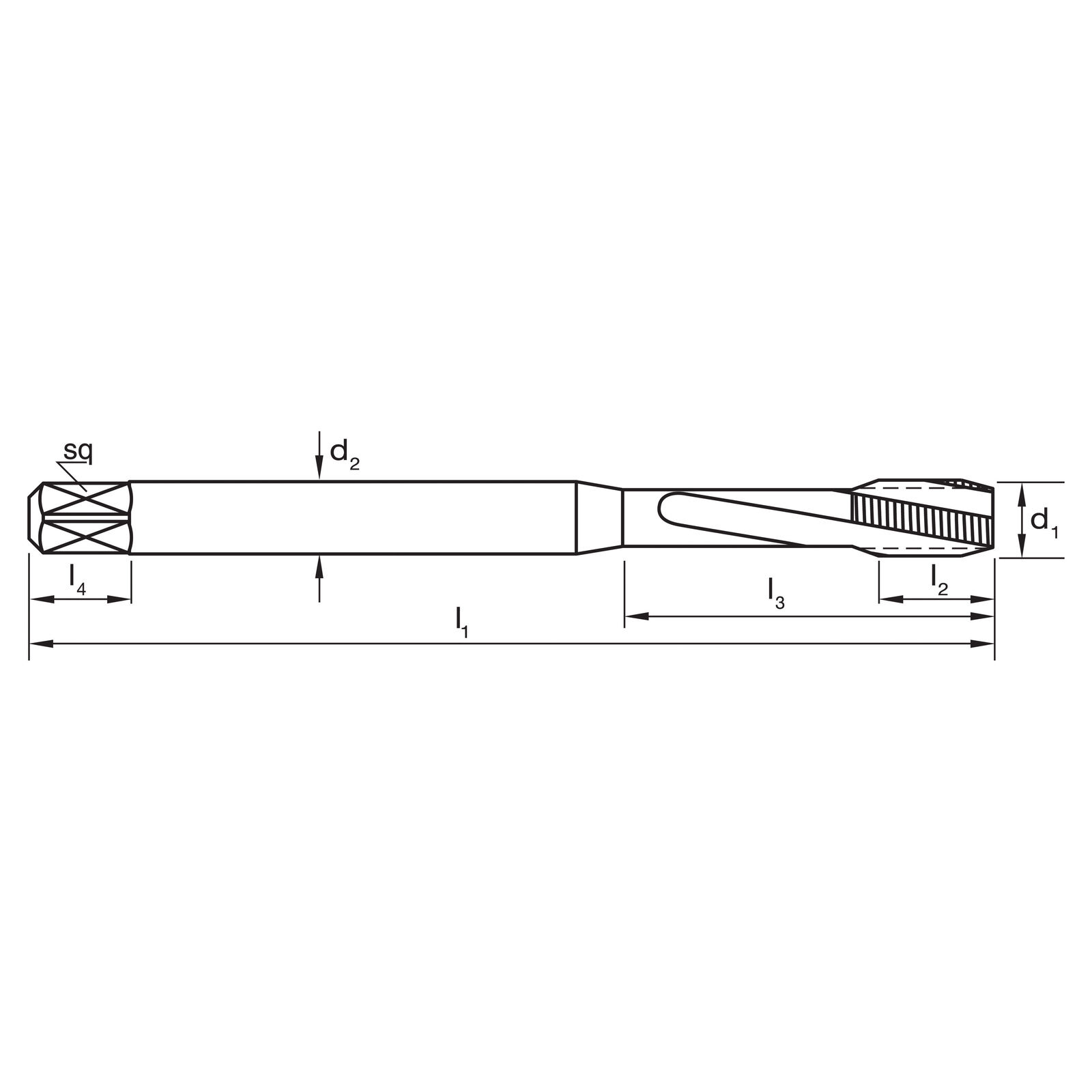

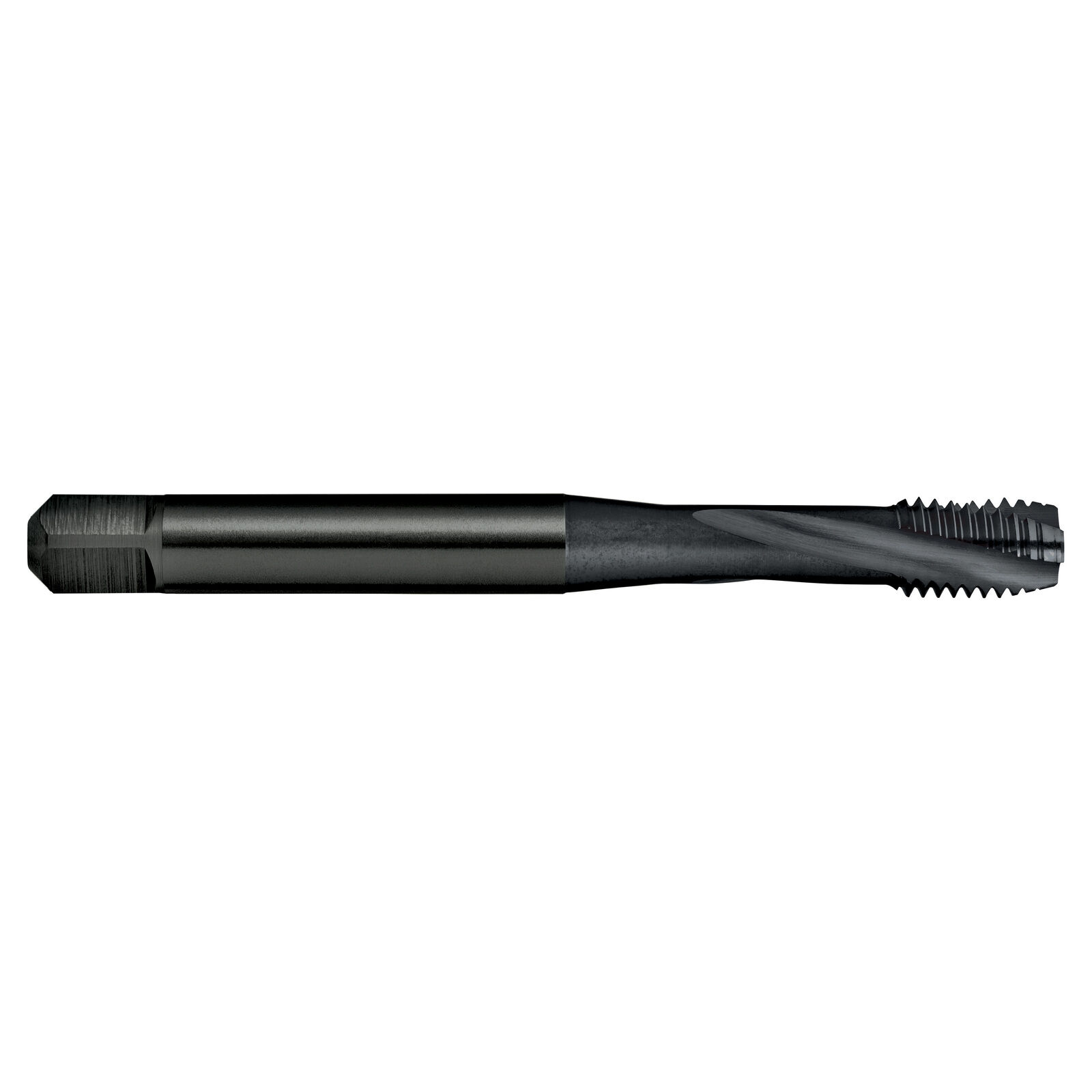

Tap T209 M 10x1.5 6HX Spiral R15 H Din371 C PM-Co. Blu Sutton T2091000



Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6HX
  • Lead: Form C / 3 x P

Part Number/SKU: T2091000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2091000
Barcode # 9311963399508
Brand Sutton Tools
Shipping Weight 0.0540kg
Shipping Width 0.002m
Shipping Height 0.002m
Shipping Length 0.014m
