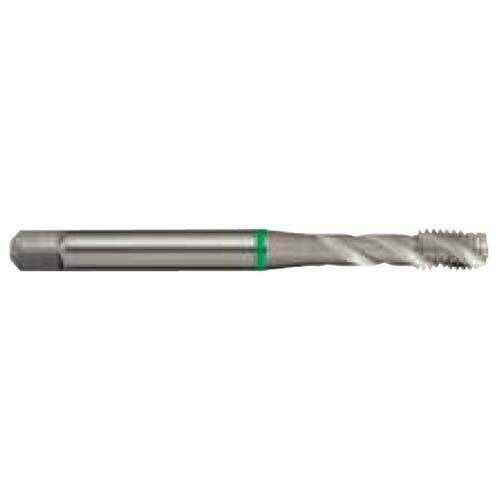

Tap T219 M 8x1.25 6H Spiral R40 UNI DIN371 C PM-V3 Sutton T2190800



Sutton T219 Spiral Flute Tap - M - R40 UNI

  • Universal use.
  • Suitable for materials up to 1200N/mm2.
  • Blind holes.
  • Depths up to 2.5 x d1.

Specifications

  • Group Code: T219
  • Material: PM-HSSE V3
  • Surface Finish: Brt
  • Colour Ring & Application: UNI
  • Geometry: R40°
  • Chamfer: Form C / 2.5 x P
  • Limit & Nut Tolerance: ISO 2 / 6H

Part Number/SKU: T2190800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2190800
Barcode # 9311963385426
Brand Sutton Tools
Shipping Weight 0.0320kg
Shipping Width 0.015m
Shipping Height 0.013m
Shipping Length 0.115m
