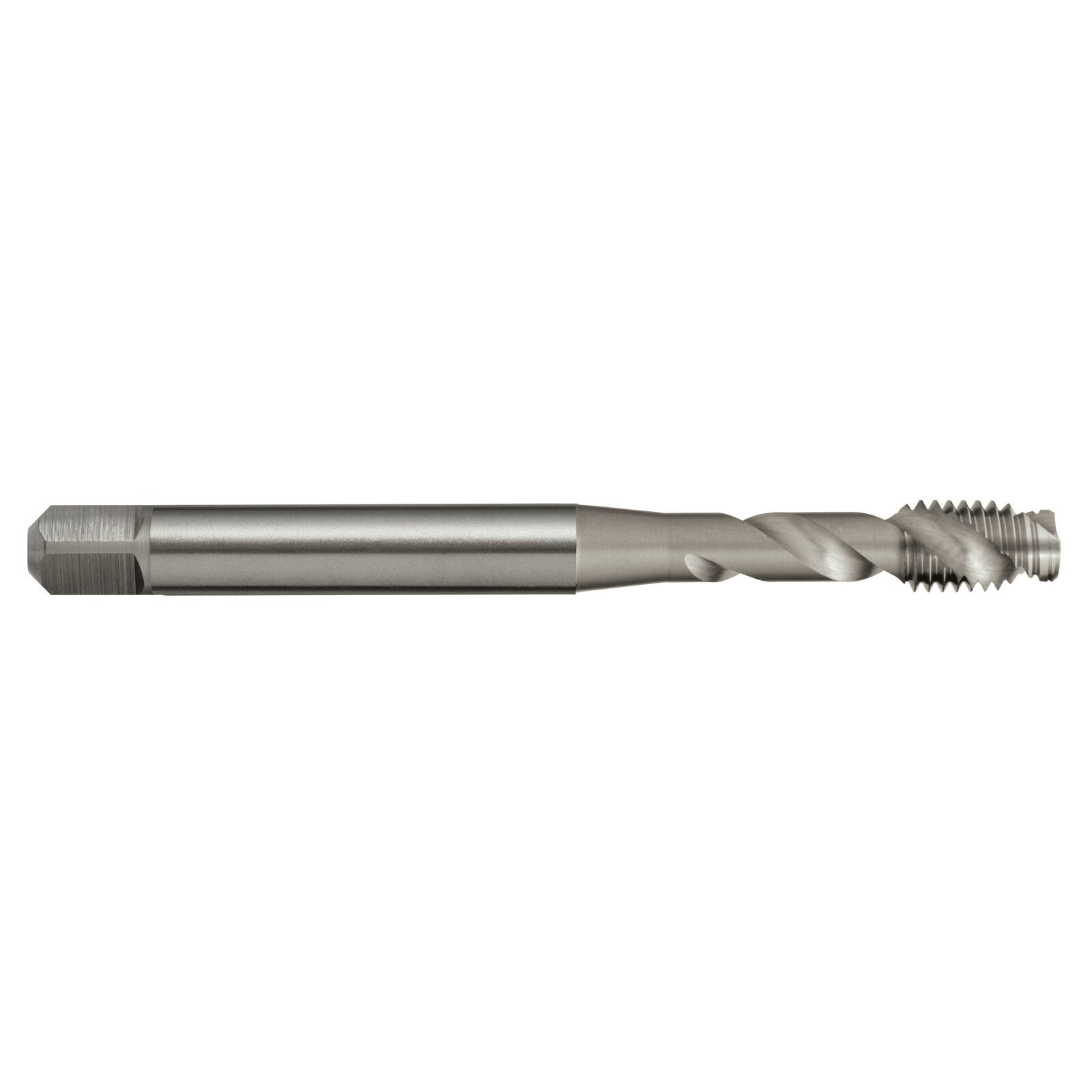

Tap T231 M 3.5X0.6 6H Spiral R45 AL DIN372 C HSSE Sutton T2310350



Features

  • Suitable for use in wrought aluminium and low silicon aluminium
  • Blind holes
  • Depths up to 3 x d1
  • CrN for longer tool life

Specifications

  • Designation: Al (for malleable aluminum with long strips)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤ 12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤ 12% Si - Heat Treatable: Age Hardened

Part Number/SKU: T2310350

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2310350
Barcode # 9311963496658
Brand Sutton Tools
Shipping Weight 0.0060kg
Shipping Width 0.010m
Shipping Height 0.009m
Shipping Length 0.081m
