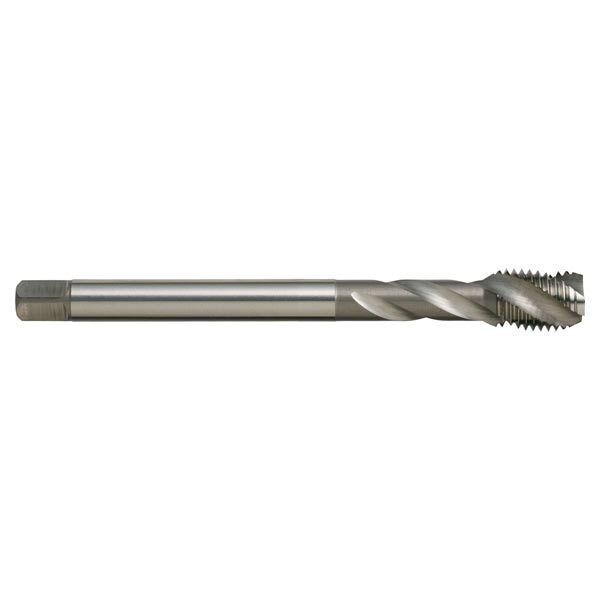

Tap T245 MF 8x1 6H Spiral R40 N Din374 C HSSE Sutton T2450805



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T2450805

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2450805
Barcode # 9311963520513
Brand Sutton Tools
Shipping Weight 0.0240kg
Shipping Width 0.014m
Shipping Height 0.012m
Shipping Length 0.115m
