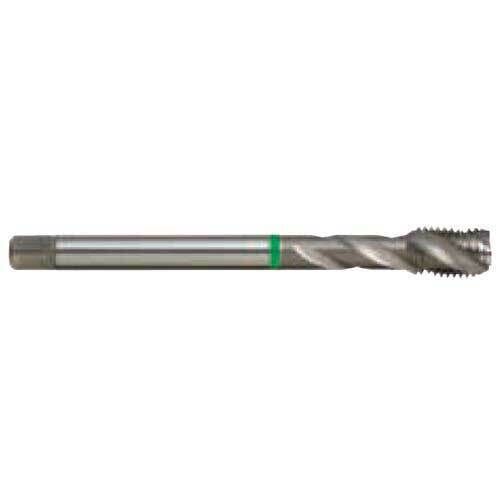

Tap T253 MF 14x1.25 6H Spiral R40 UNI DIN374 C PM-V3 Sutton T2531406



Sutton T253 Spiral Flute Tap - MF - R40 UNI

  • Universal use
  • Suitable for a wide range of materials.
  • Blind holes.
  • Suitable for machine operations.
  • Depths up to approx. 3 x d1

Specifications

  • Group Code: T253
  • Material: PM-HSSE V3
  • Surface Finish: Brt
  • Colour Ring & Application: UNI
  • Geometry: R40°
  • Chamfer: Form C / 2.5 x P
  • Limit & Nut Tolerance: ISO 2 / 6H

Part Number/SKU: T2531406

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2531406
Barcode # 9311963400655
Brand Sutton Tools
Shipping Weight 0.0750kg
Shipping Width 0.024m
Shipping Height 0.023m
Shipping Length 0.103m
