Tap T286 M 10x1.5 6H Straight N Din371 C HSSE Sutton T2861000

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Depths up to 1.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 1.5xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: DIN371
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T2861000

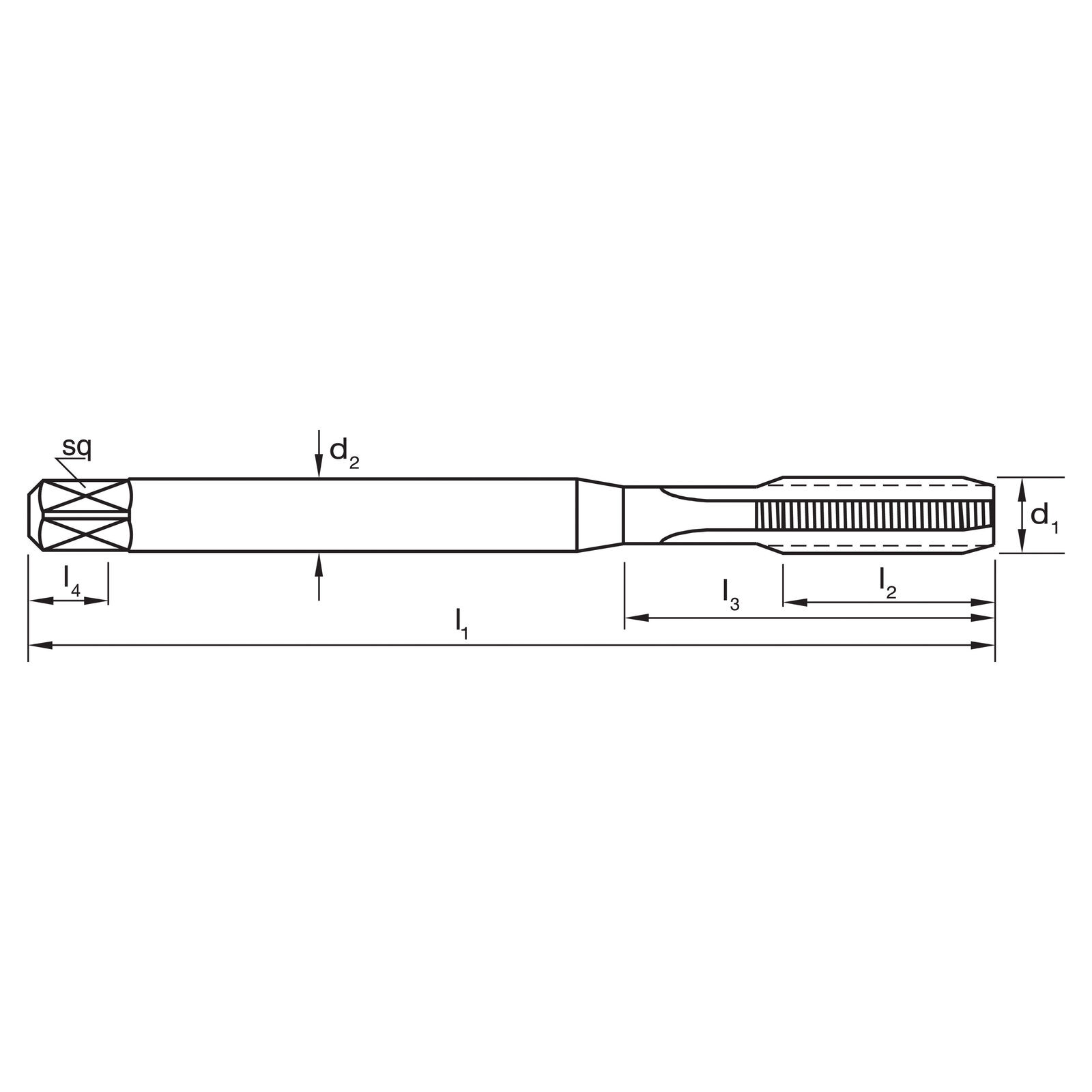

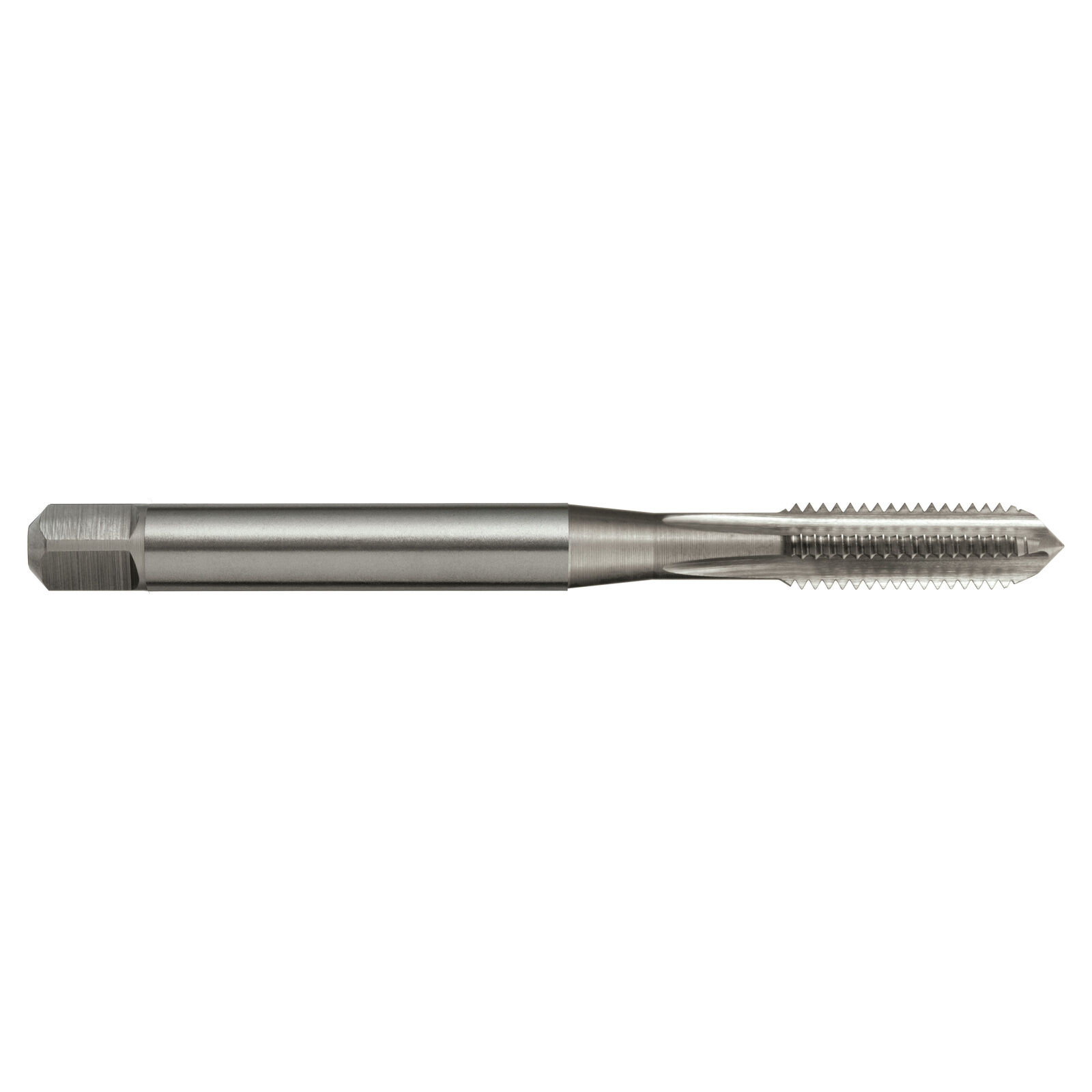

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
