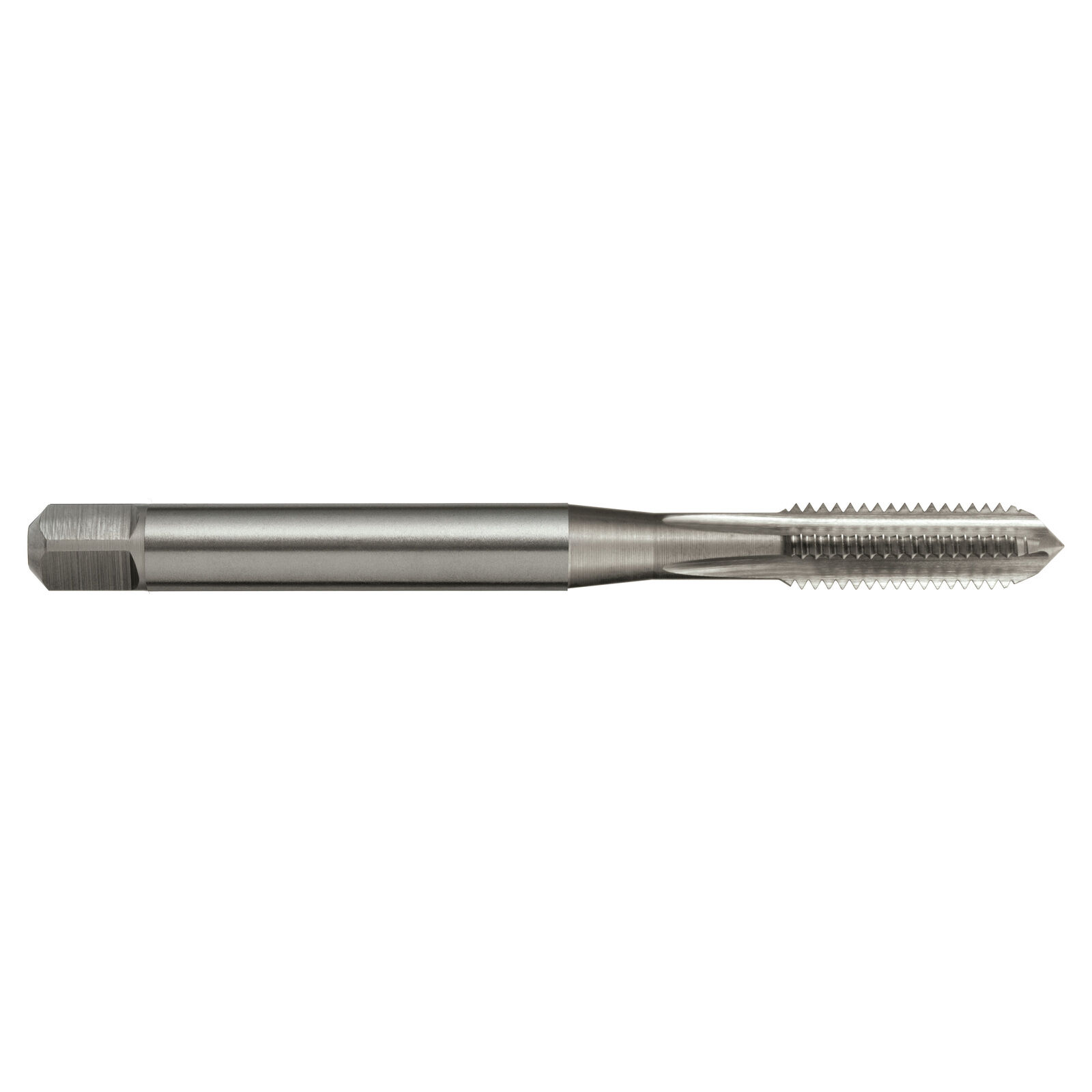

Tap T286 M 2x0.4 6H Straight N Din371 C HSSE Sutton T2860200



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T2860200

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2860200
Barcode # 9311963396910
Brand Sutton Tools
Shipping Weight 0.0040kg
Shipping Width 0.010m
Shipping Height 0.008m
Shipping Length 0.065m
