Tap T304 G 1/8-28 (BSPF) Straight N Din5156 C HSSE Sutton T3040973



Features

  • General Purpose use in materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form C / 3 x P

Part Number/SKU: T3040973

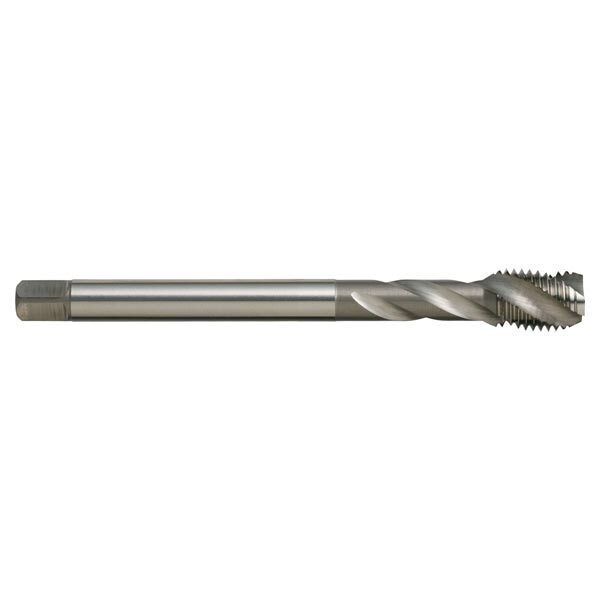

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3040973
Barcode # 9311963152004
Brand Sutton Tools
Shipping Weight 0.0320kg
Shipping Width 0.014m
Shipping Height 0.014m
Shipping Length 0.116m
