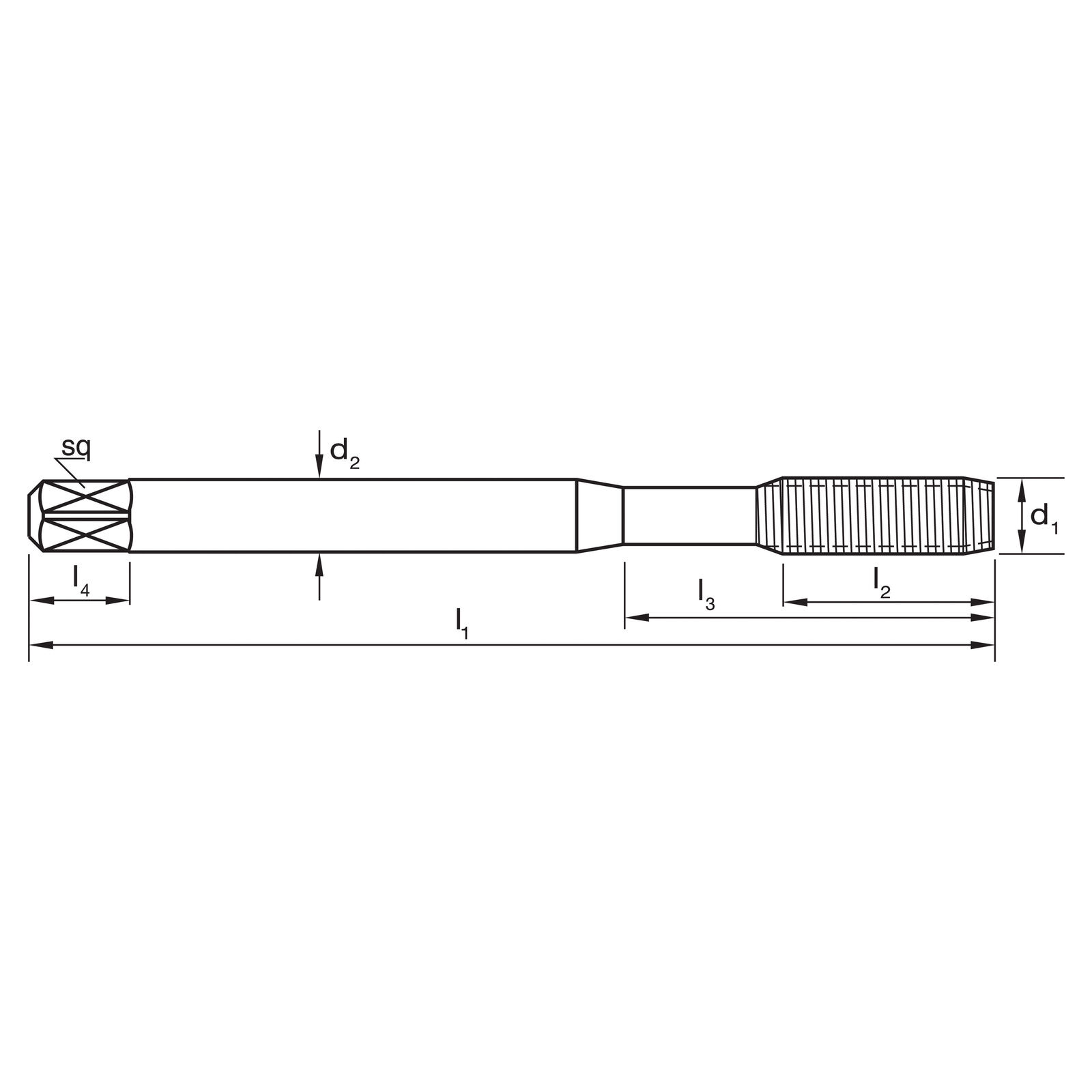

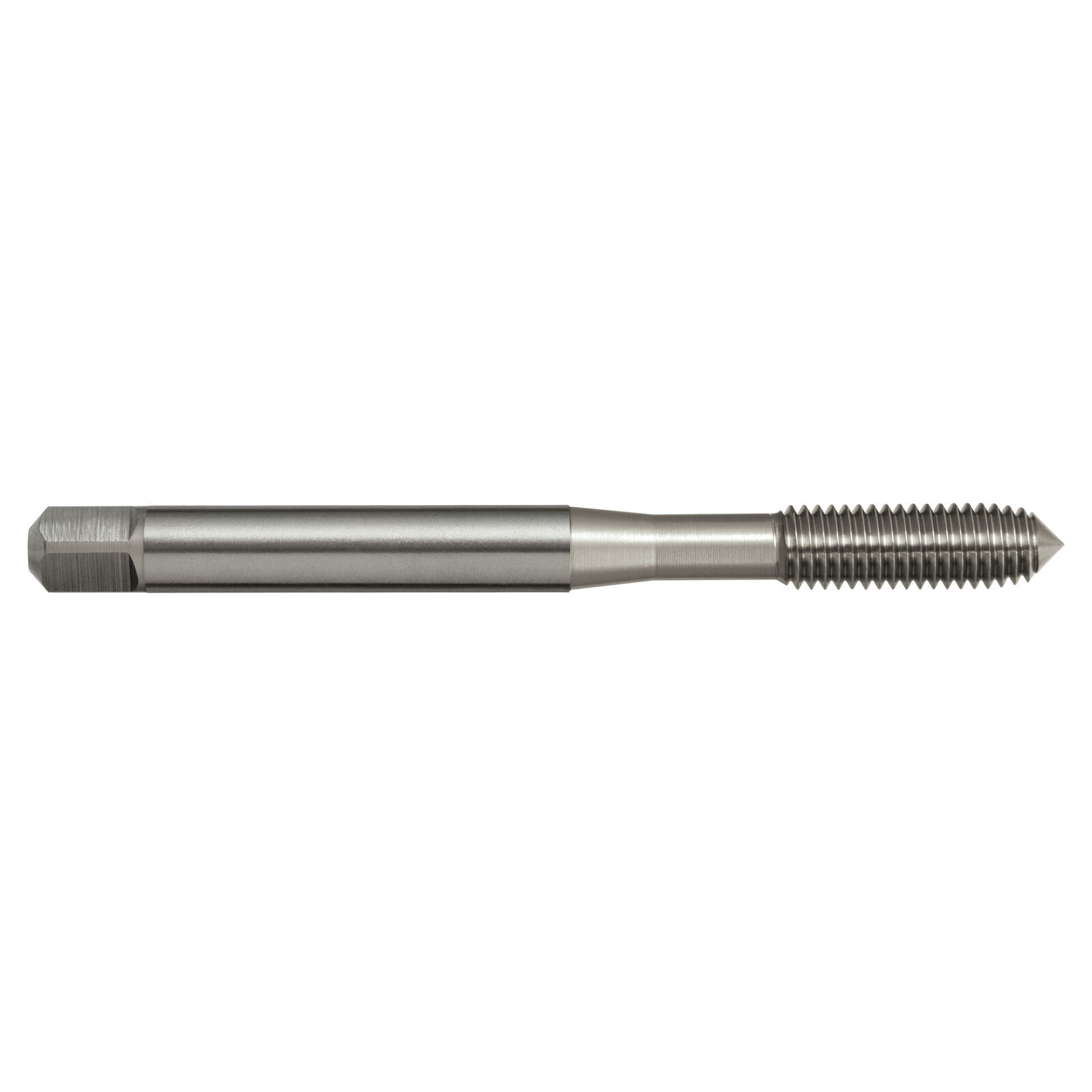

Tap T311 M 6x1 6HX Forming N Din2174 D HSSE Sutton T3110600



Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - No Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Part Number/SKU: T3110600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3110600
Barcode # 9311963513218
Brand Sutton Tools
Shipping Weight 0.0150kg
Shipping Width 0.010m
Shipping Height 0.009m
Shipping Length 0.093m
