TAP T398 M 8x1.25 6H SPIRAL N ISO529 Bott HSSE TiN T3980800

Features

• Form C / 3 x P General purpose use
• Suitable for materials up to 1000N/mm2
• Blind holes
• Depths up to approx. 2.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 2.5xD
• Shank Form: Reinforced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: ISO529
• Thread Form: ISO Metric Coarse (M)
• Lead: ISO 2 / 6H

Part Number/SKU: T3980800

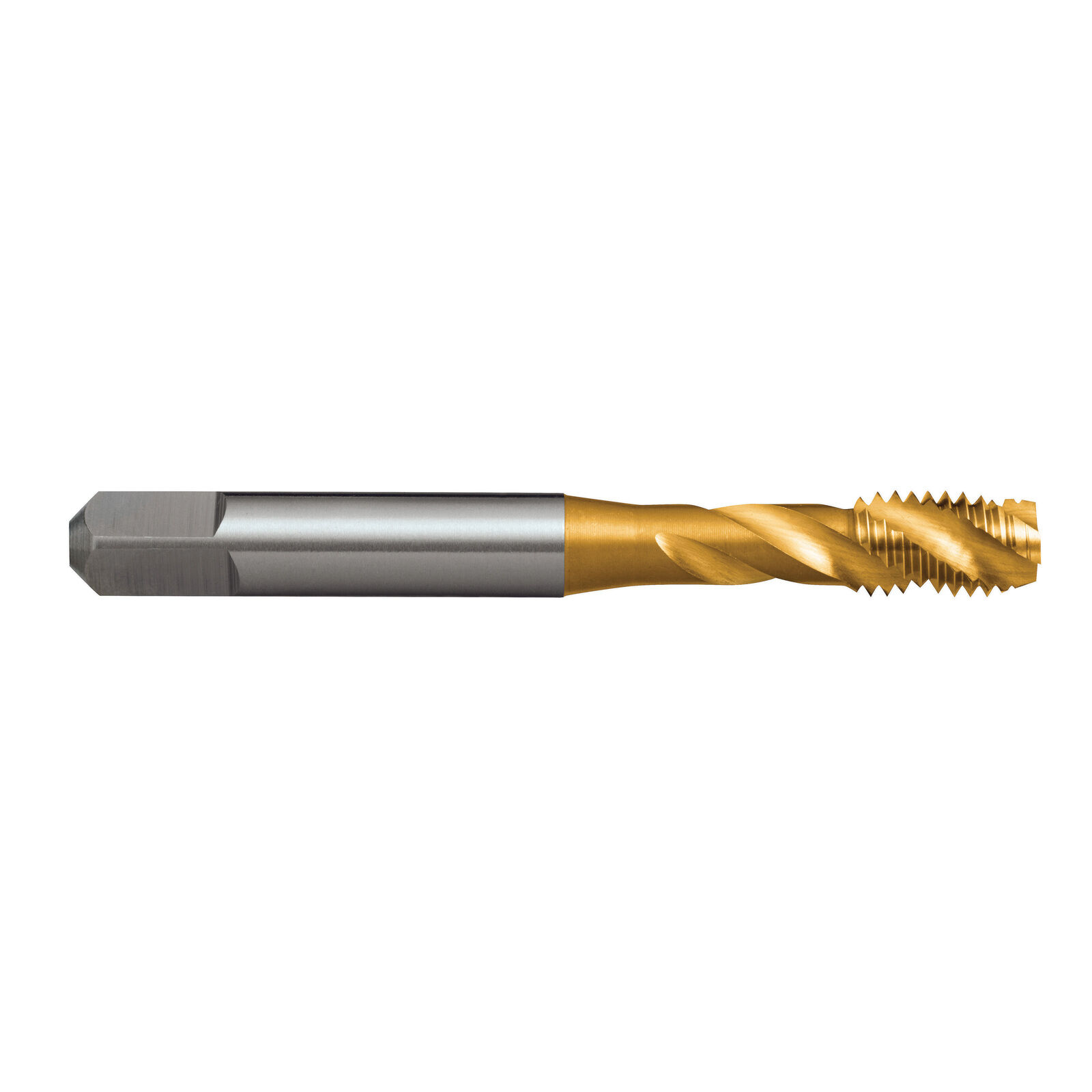

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
