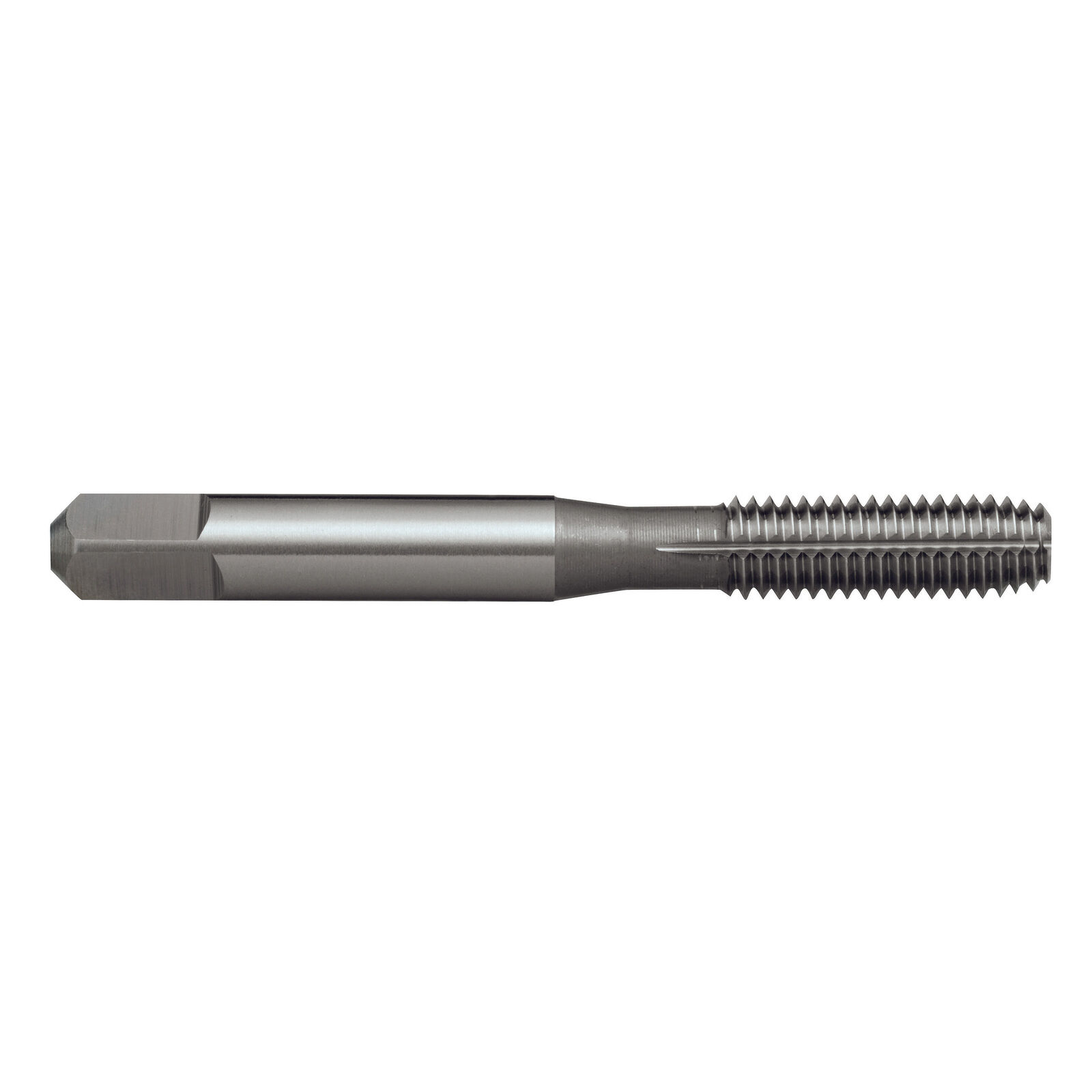

Tap T399 M 10x1.5 6H Forming ISO529 Bott HSSE Sutton T3991000

Features

• For cold forming of threads in materials with good flow characteristics
• Through or Blind holes
• Depths up to approx. 1.5 x d1
• TiN For longer tool life

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 1.5xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Fluteless - Single Coolant Groove
• Standard: ISO529
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: GH4 / 6H
• Lead: Form C / 3 x P

Part Number/SKU: T3991000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
