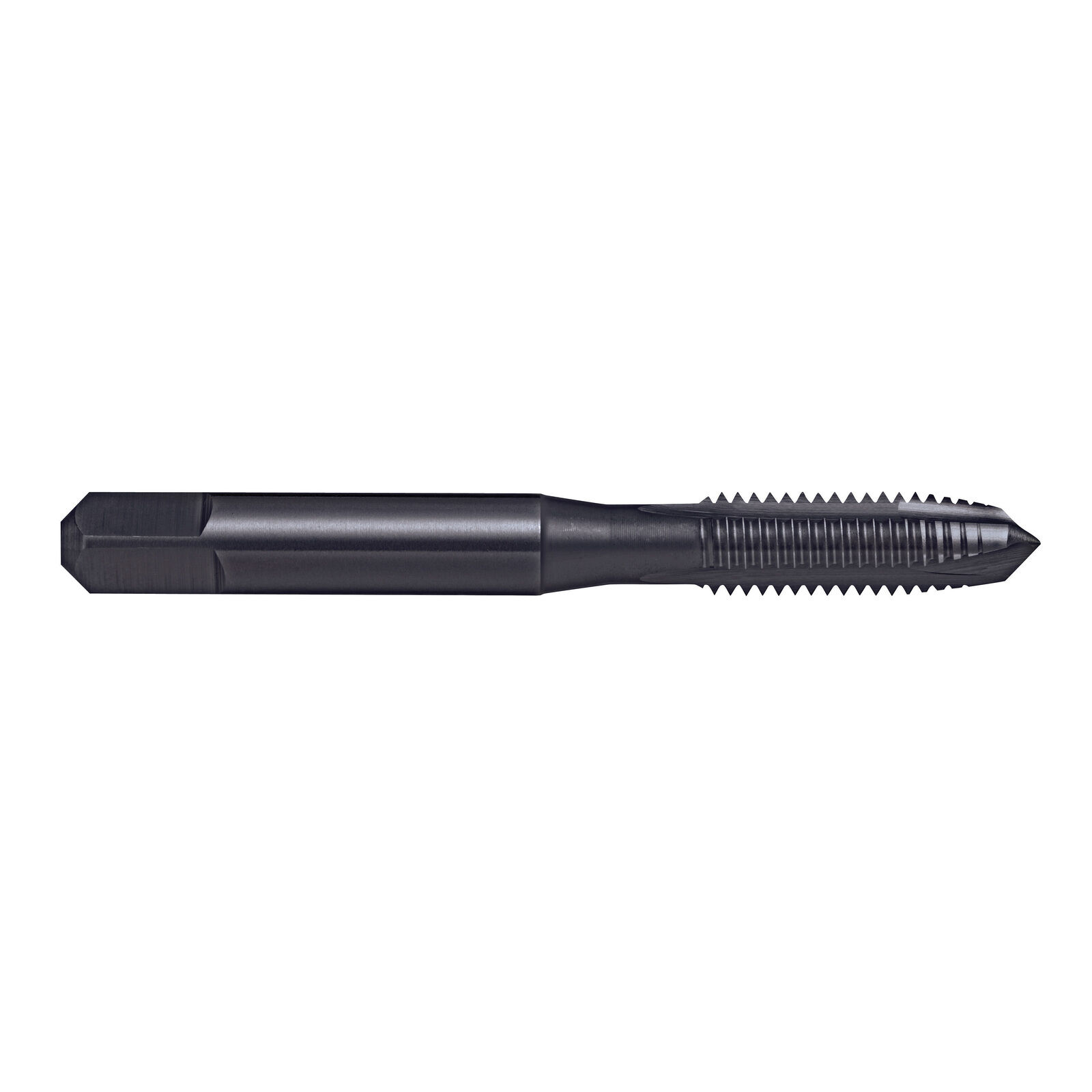

Tap T423 UNC 5/8-11 2B Gun N ISO529 Inter HSSE BLU Sutton T4231588

Features

• Form B / 4.5 x P General purpose use
• Suitable for materials up to 1000N/mm2
• Through holes
• Depths up to approx. 3 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: ISO529
• Thread Form: UNC
• Nut Tolerance: 2B
• Lead: Form B / 4.5 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T4231588

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
