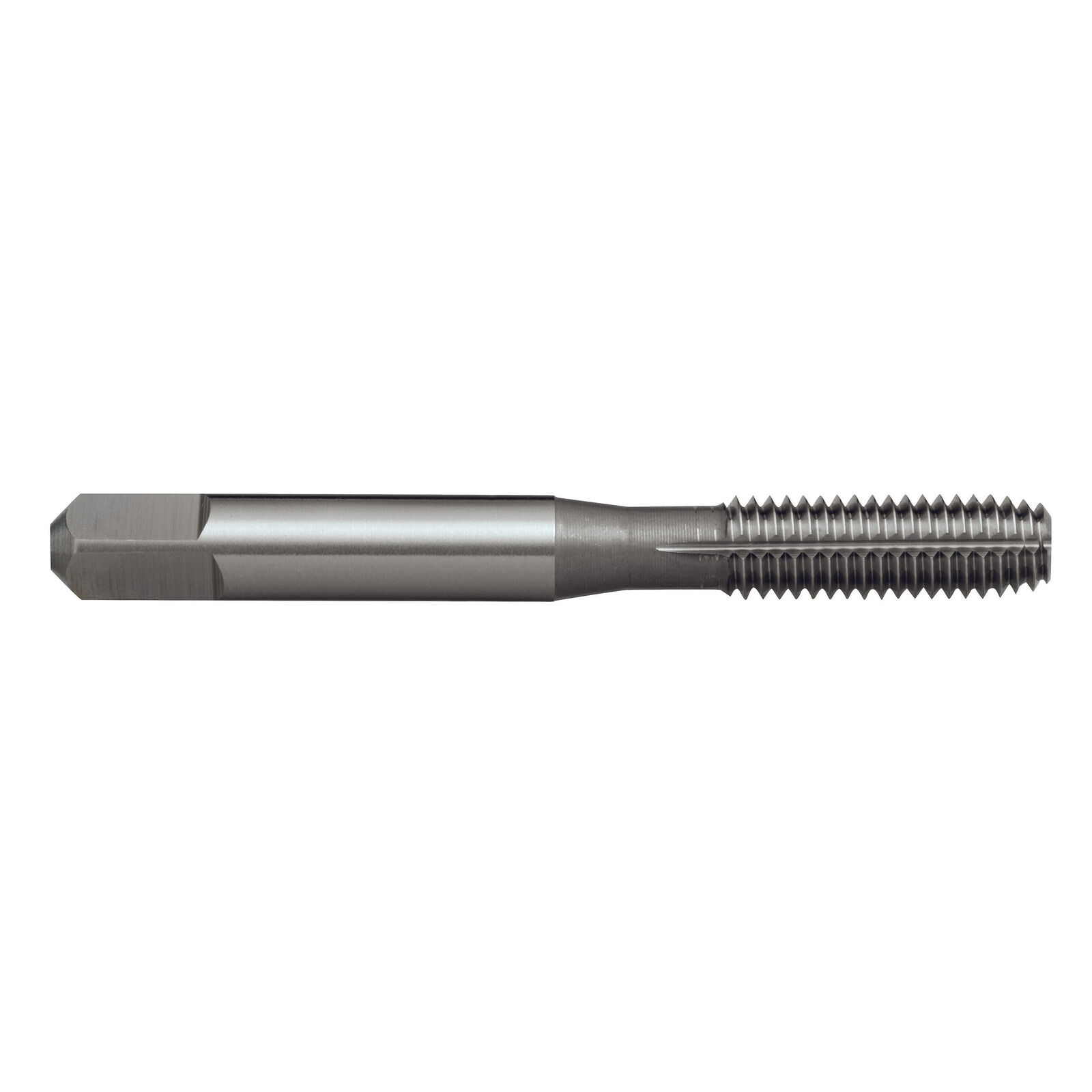

Tap T428 UNC 3/8-16 2B Forming ISO529 Bott HSSE Sutton T4280953



Features

  • For cold forming of threads in materials with good flow characteristics
  • Through or Blind holes
  • Depths up to approx. 1.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Single Coolant Groove
  • Standard: ISO529
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T4280953

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4280953
Barcode # 9311963026022
Brand Sutton Tools
Shipping Weight 0.0470kg
Shipping Width 0.018m
Shipping Height 0.016m
Shipping Length 0.102m
