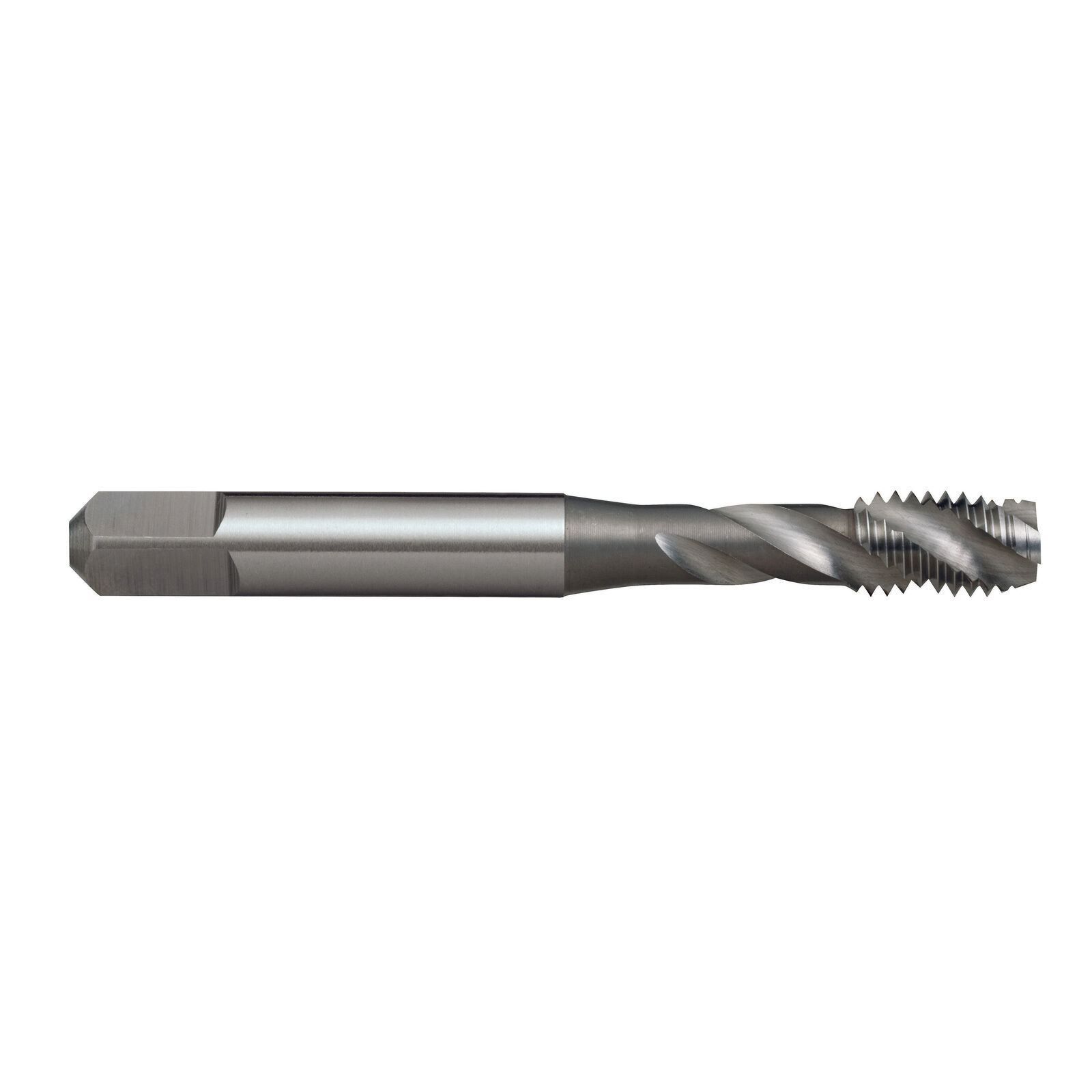

Tap T442 UNF 1/4-28 2B Spiral ISO529 Bott HSSE Sutton T4420635



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: ISO529
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T4420635

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4420635
Barcode # 9311963015781
Brand Sutton Tools
Shipping Weight 0.0150kg
Shipping Width 0.010m
Shipping Height 0.009m
Shipping Length 0.081m
