TAP T455 BSW 1/2-12 Z3 STRAIGHT ISO529 Bott HSS TiN T4551270



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Titanium Nitride (TiN) 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Bottoming

Part Number/SKU: T4551270

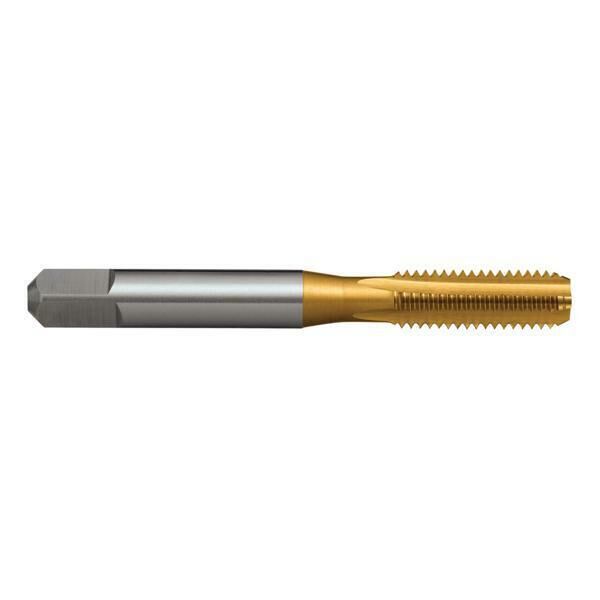

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4551270
Barcode # 9311963064741
Brand Sutton Tools
Shipping Weight 0.0480kg
Shipping Width 0.018m
Shipping Height 0.016m
Shipping Length 0.096m
