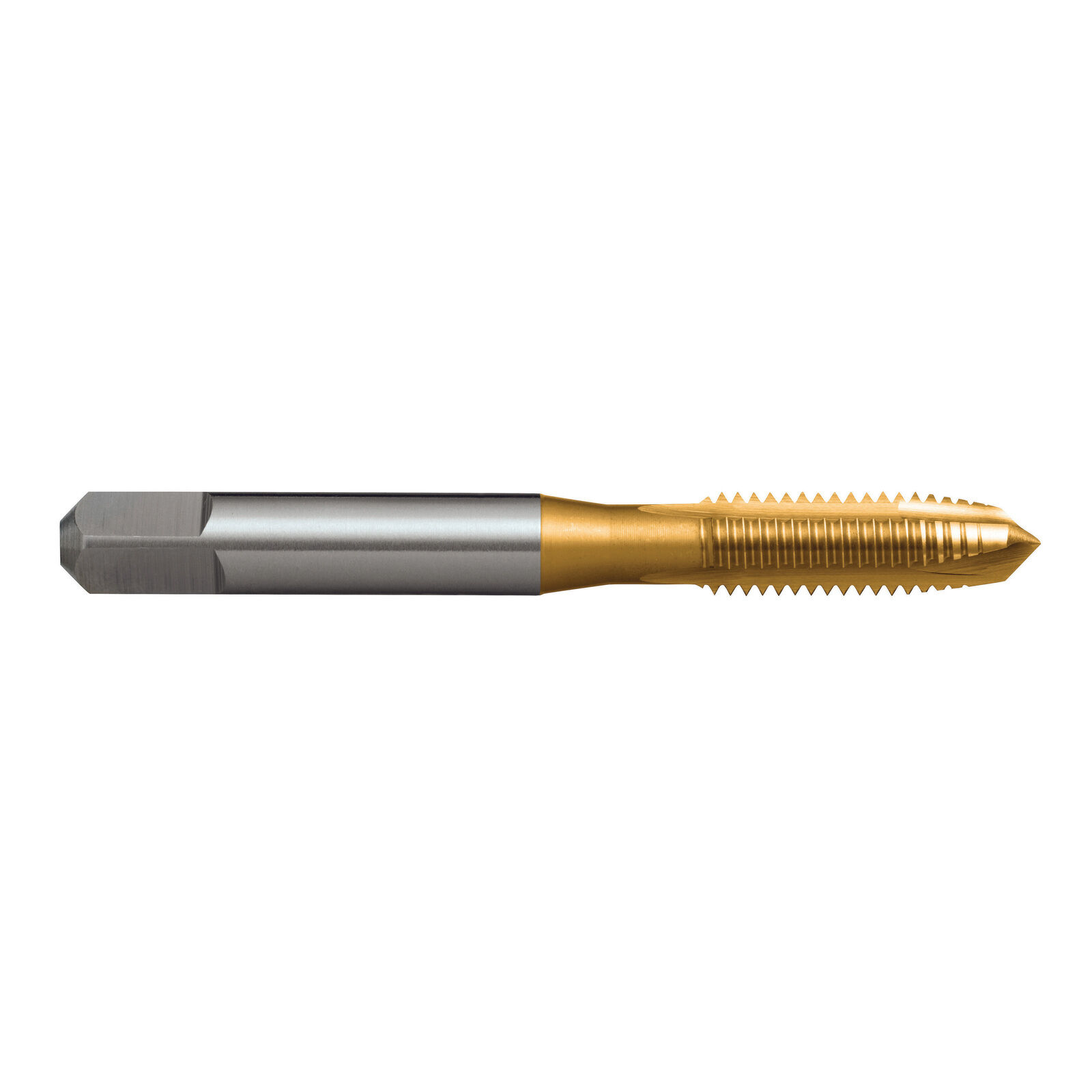

TAP T459 BSW 3/16-24 Z3 GUN ISO529 Inter HSSE TiN T4590476



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN) 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Form B / 4.5 x P

Part Number/SKU: T4590476

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4590476
Barcode # 9311963066745
Brand Sutton Tools
Shipping Weight 0.0090kg
Shipping Width 0.010m
Shipping Height 0.009m
Shipping Length 0.082m
