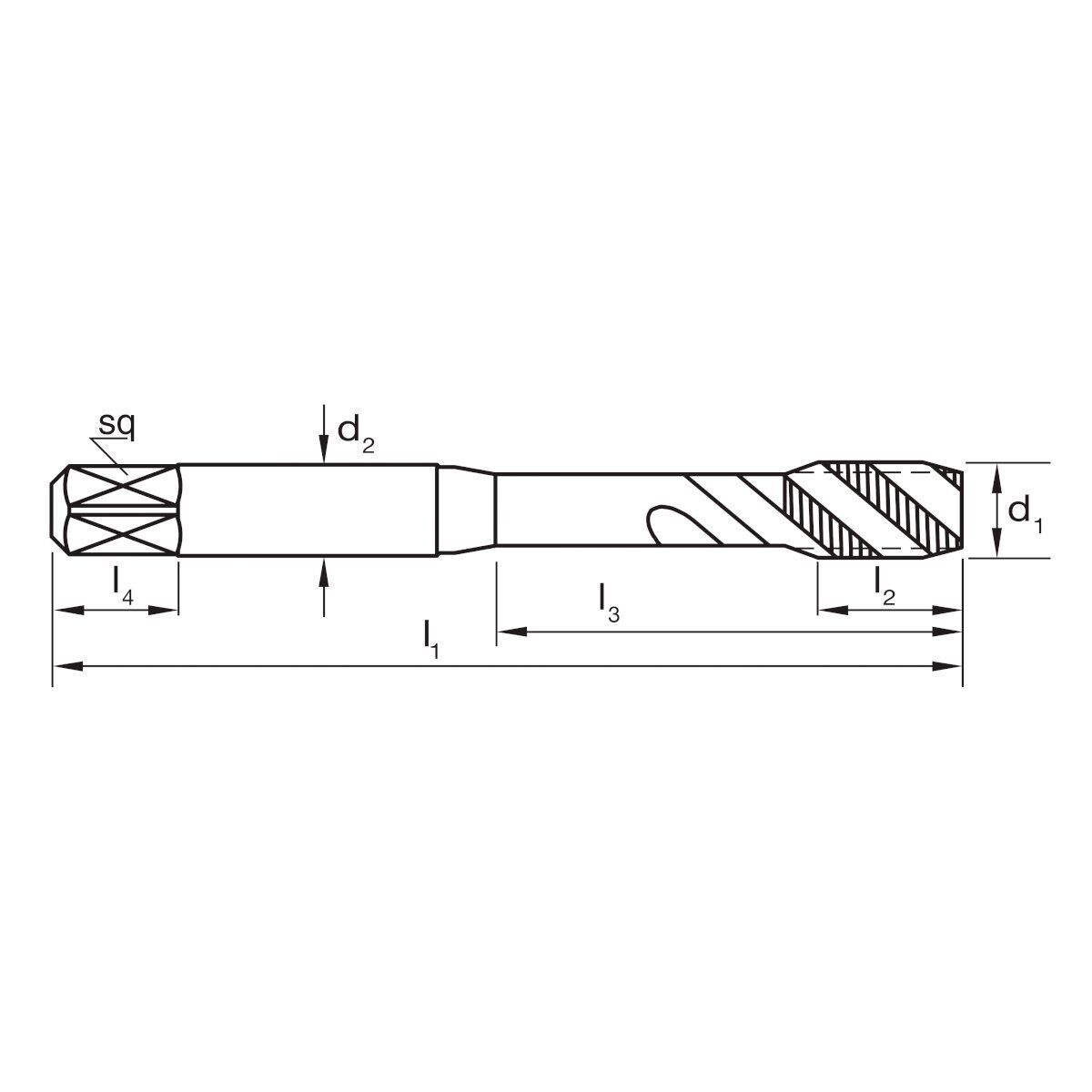

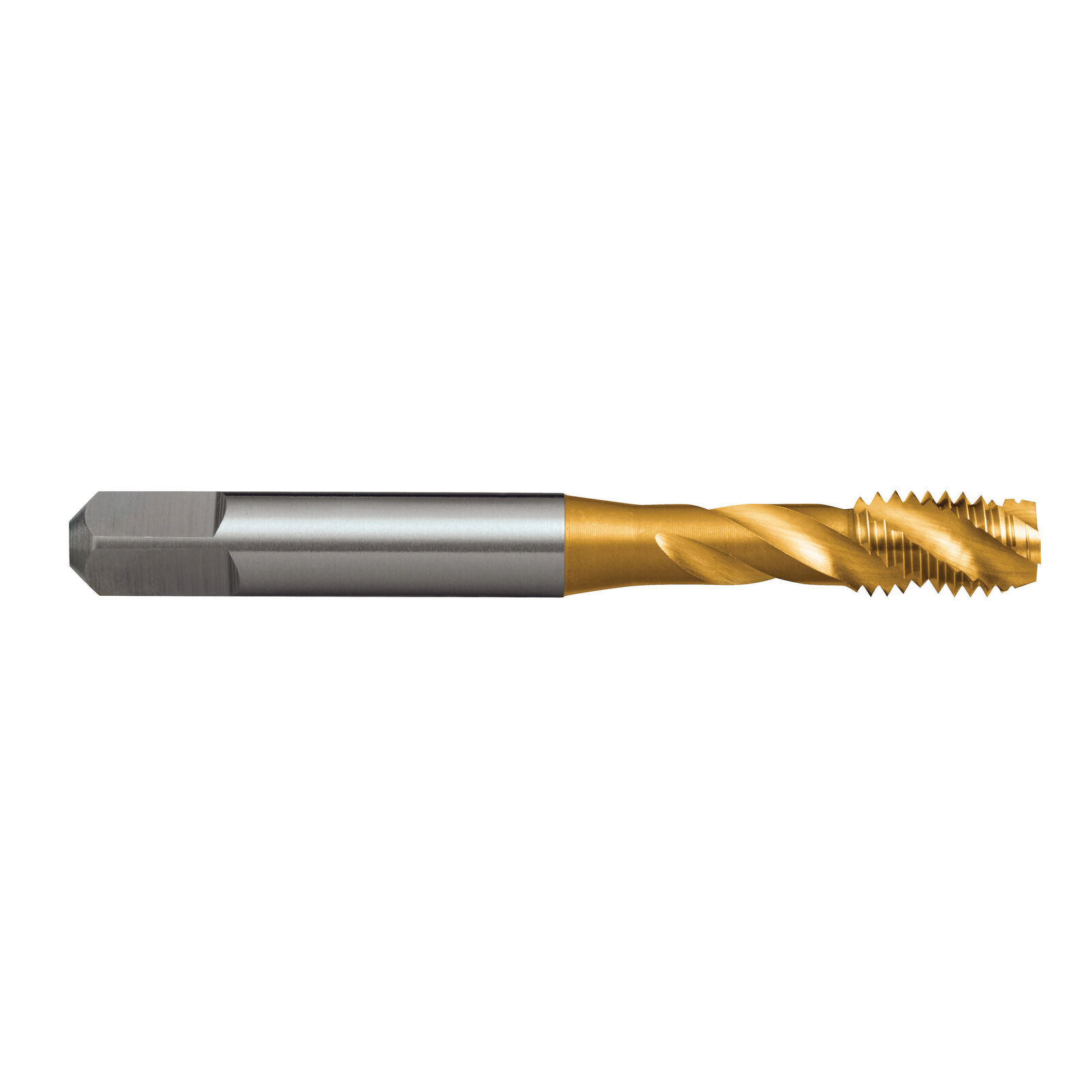

TAP T462 BSW 1/2-12 Z3 SPIRAL ISO529 Bott HSSE TiN T4621270



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Form C / 3 x P

Part Number/SKU: T4621270

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4621270
Barcode # 9311963065151
Brand Sutton Tools
Shipping Weight 0.0440kg
Shipping Width 0.018m
Shipping Height 0.016m
Shipping Length 0.090m
