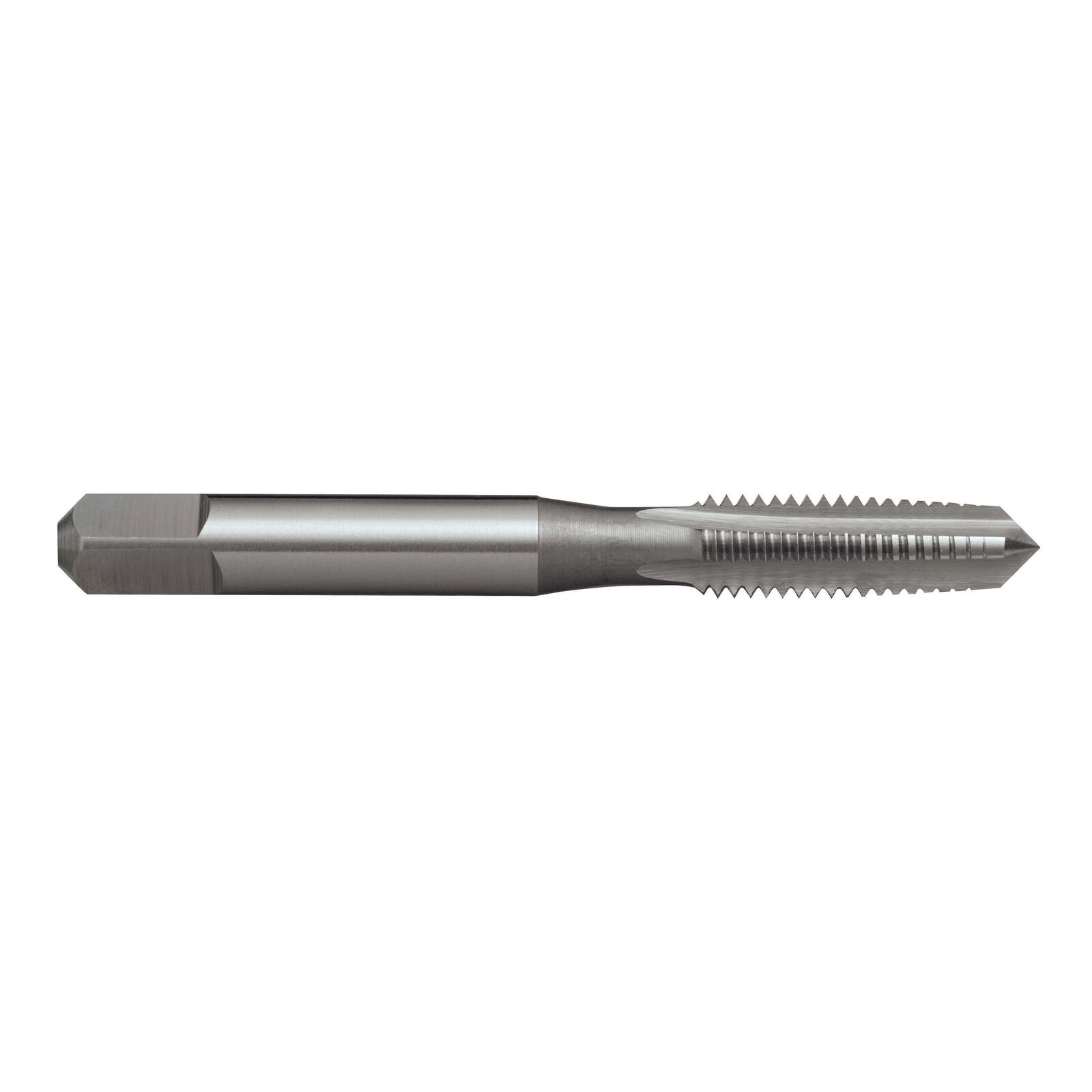

Tap T469 BA 6 Z3 Straight ISO529 Taper HSS Sutton T4690280

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 1xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: ISO529
• Thread Form: 47.5° (BA)
• Nut Tolerance: Z3 Medium
• Lead: Taper

Part Number/SKU: T4690280
