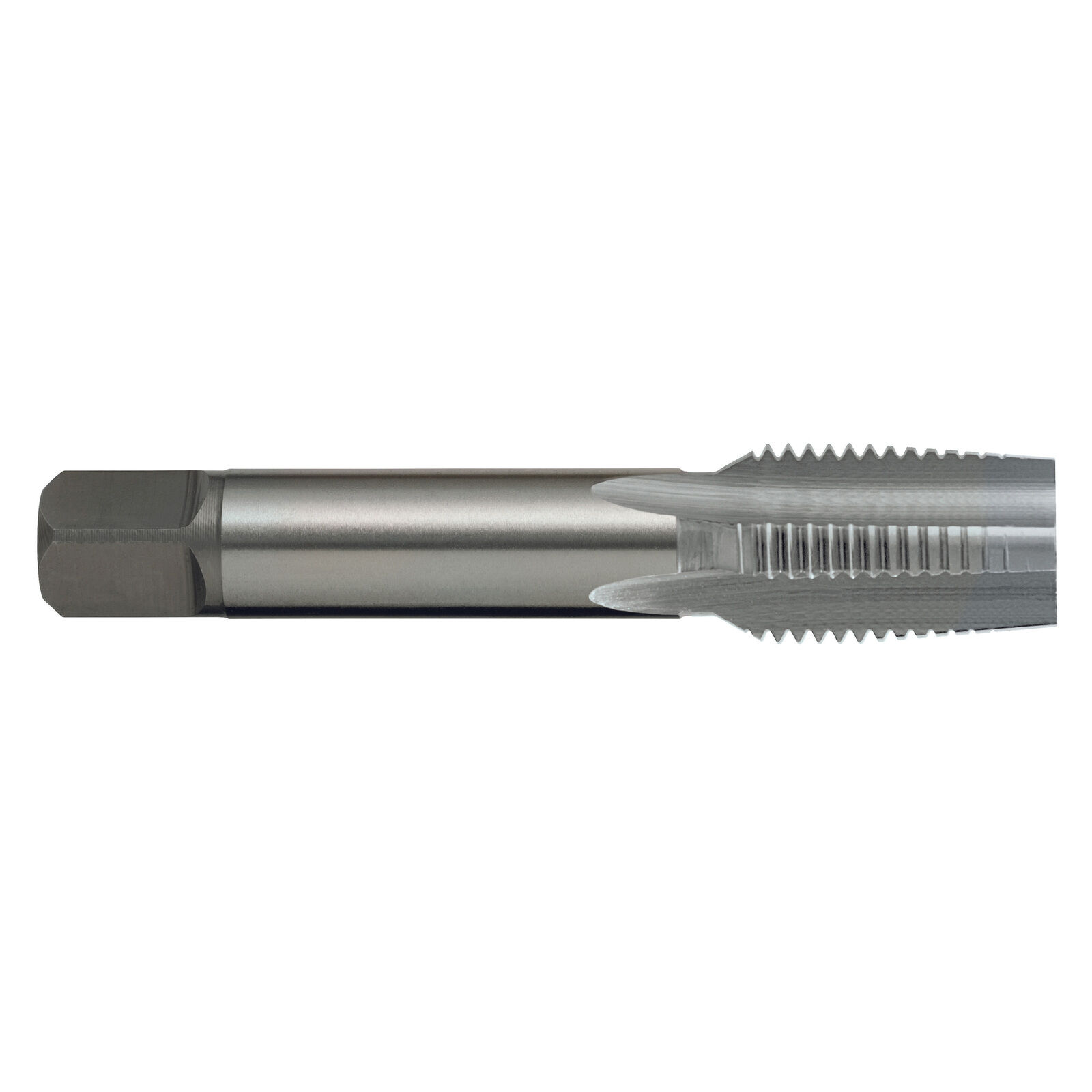

Tap T479 G 1-11 Z3 (BSPF) Straight ISO2284 Taper HSS Sutton T4793325



Features

  • General Purpose use for materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Taper

Part Number/SKU: T4793325

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4793325
Barcode # 9311963108308
Brand Sutton Tools
Shipping Weight 0.4010kg
Shipping Width 0.035m
Shipping Height 0.035m
Shipping Length 0.125m
