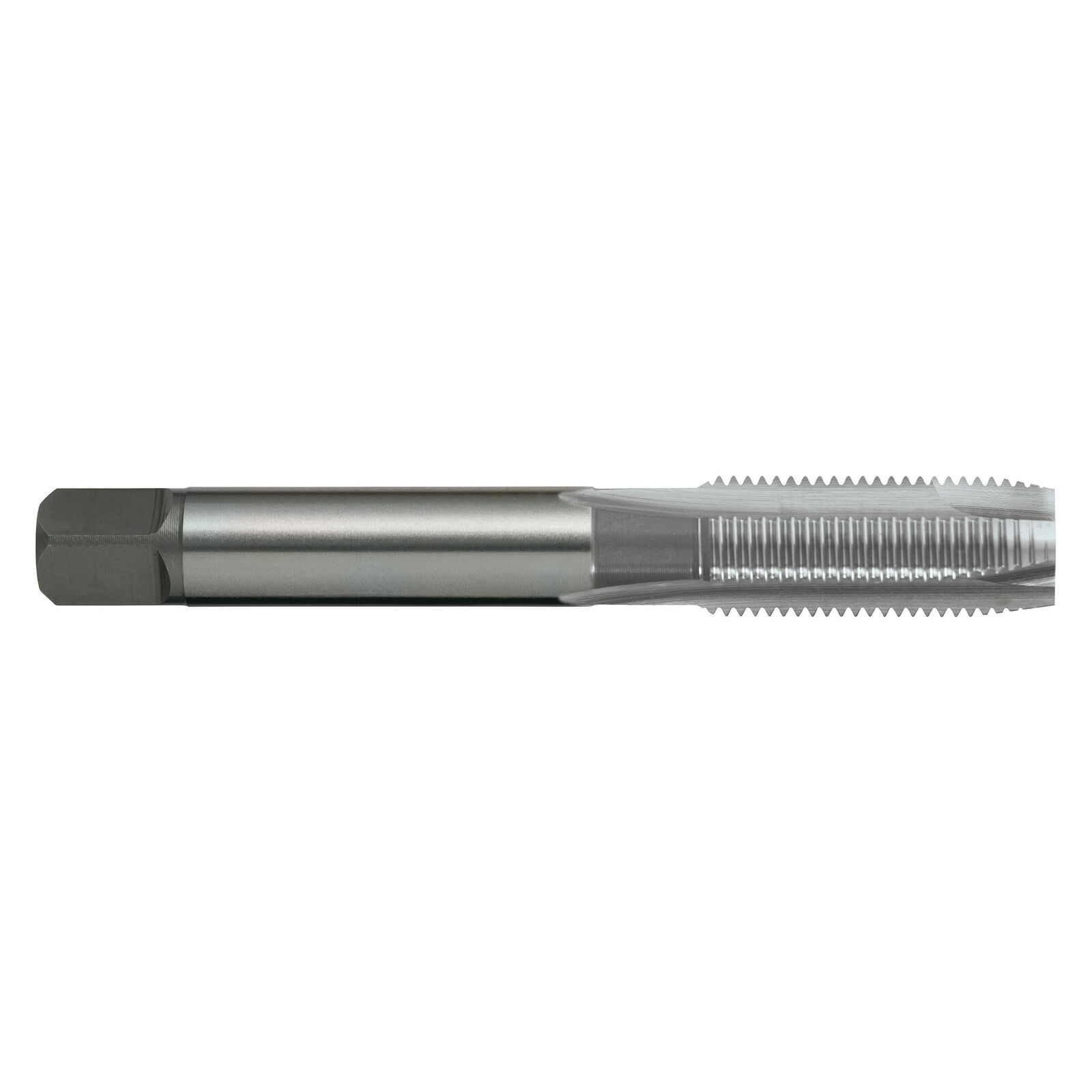

Tap T484 G 1/2-14 Z3 (BSPF) Gun B HSS Sutton T4842096



Features

  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Form B / 4.5 x P

Part Number/SKU: T4842096

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4842096
Barcode # 9311963348575
Brand Sutton Tools
Shipping Weight 0.1880kg
Shipping Width 0.022m
Shipping Height 0.024m
Shipping Length 0.122m
