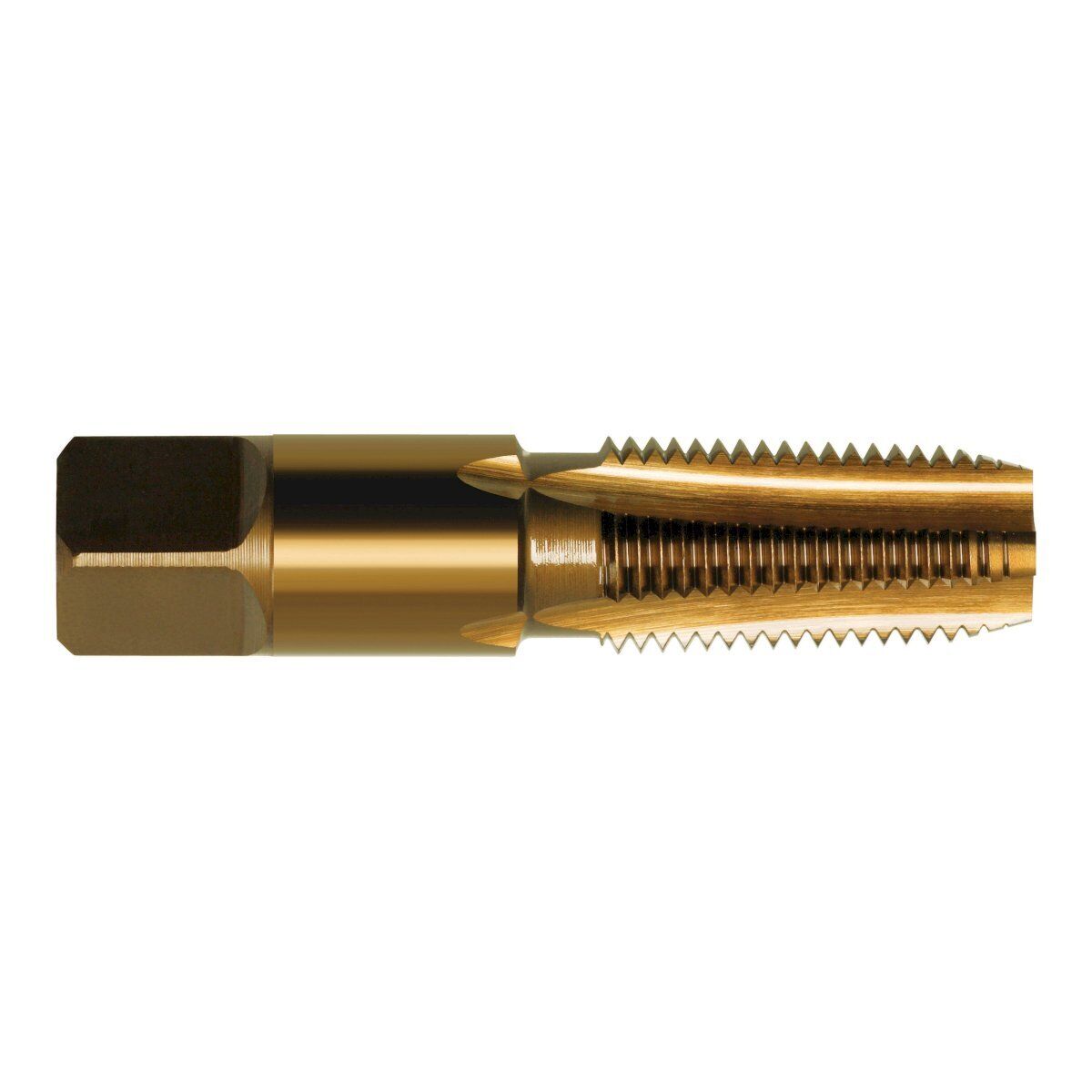

Tap T487 NPT 1/4-18 STR/FLT Ansi B94-9 Bott HSS Sutton T4871372



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Suitable for both hand and machine operations
  • Taper pipe reamer recommended prior to tapping

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Colour Temp
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Taper
  • Standard: ANSI B94-9
  • Thread Form: NPT
  • Nut Tolerance: ANSI B1.20.1
  • Lead: Bottoming

Part Number/SKU: T4871372

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4871372
Barcode # 9311963007649
Brand Sutton Tools
Shipping Weight 0.0580kg
Shipping Width 0.017m
Shipping Height 0.017m
Shipping Length 0.066m
