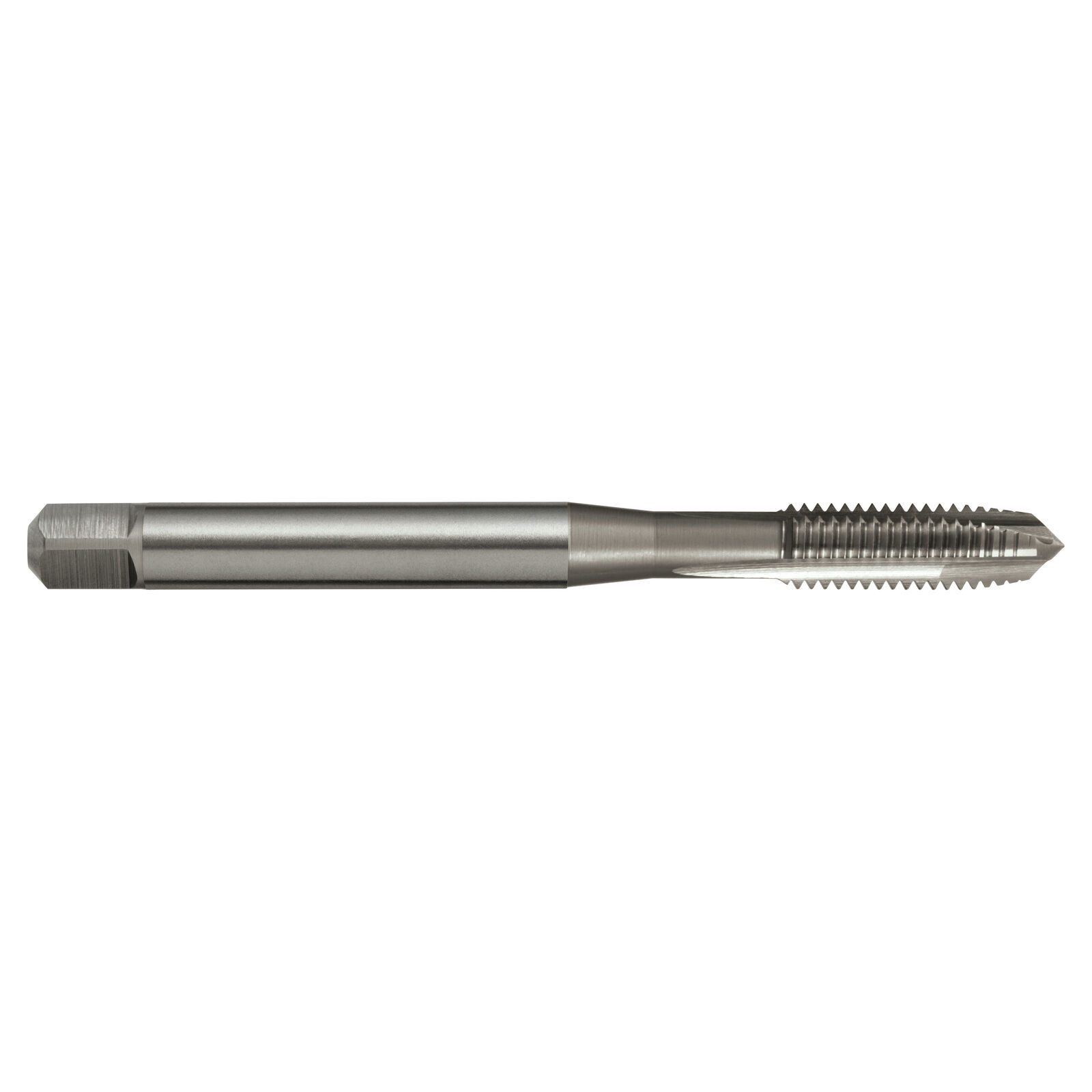

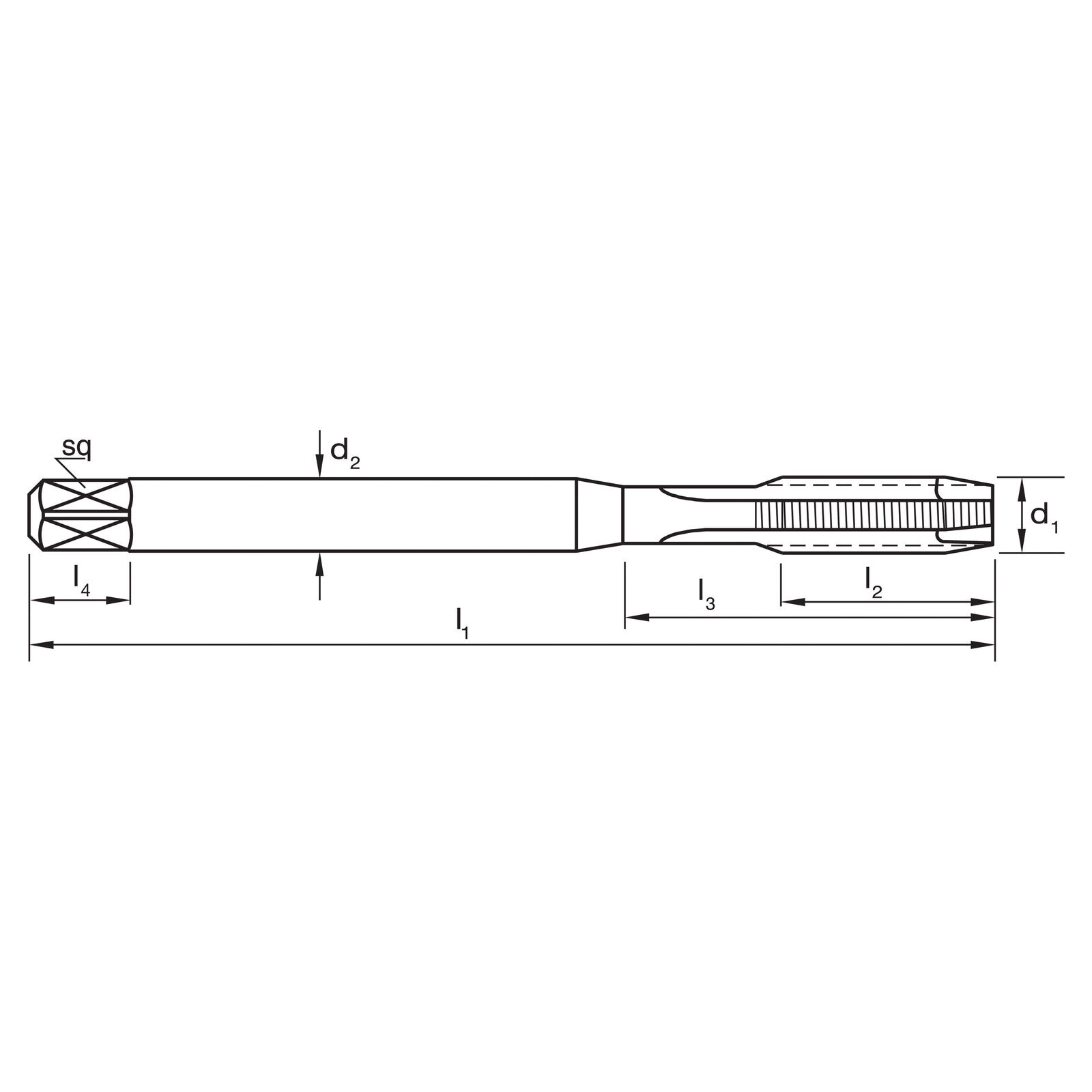

Tap T648 M 6x1 6H Gun LH N Din371 B HSSE Sutton T6480600



Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H LH
  • Lead: Form B / 4.5 x P

Part Number/SKU: T6480600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T6480600
Barcode # 9311963397672
Brand Sutton Tools
Shipping Weight 0.0170kg
Shipping Width 0.010m
Shipping Height 0.009m
Shipping Length 0.094m
