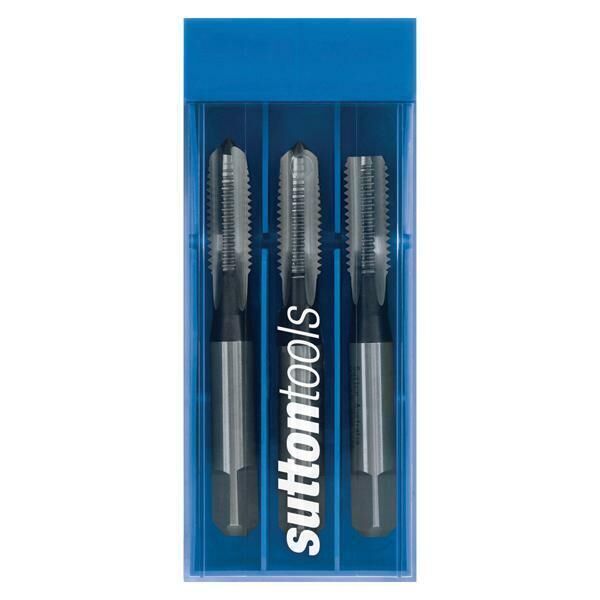

Tap T904 UNF 6-40 Set 3 Pce Straight ISO529 HSS Sutton T9040351



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Set

Part Number/SKU: T9040351

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T9040351
Barcode # 9311963044316
Brand Sutton Tools
Shipping Weight 0.0170kg
Shipping Width 0.024m
Shipping Height 0.008m
Shipping Length 0.080m
