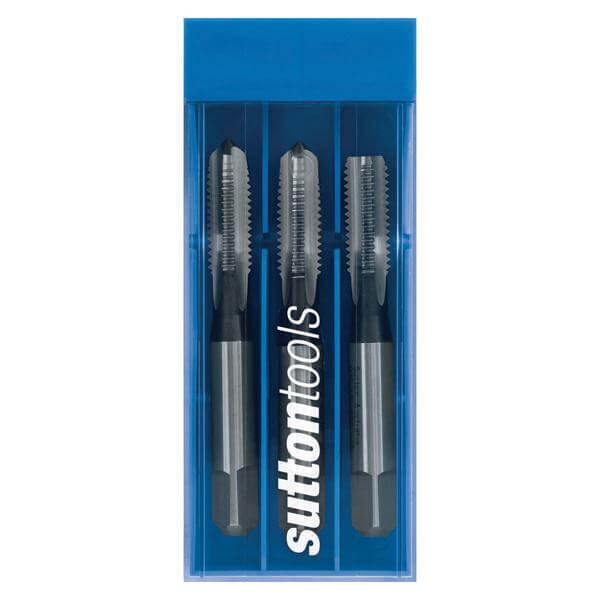

Tap T909 G 3/4-14 Set 3 Pce (BSPF) STR/FLT ISO2284 HSS Sutton T9092644



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Set

Part Number/SKU: T9092644

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T9092644
Barcode # 9311963124148
Brand Sutton Tools
Shipping Weight 0.7200kg
Shipping Width 0.088m
Shipping Height 0.030m
Shipping Length 0.124m
